New
Draper

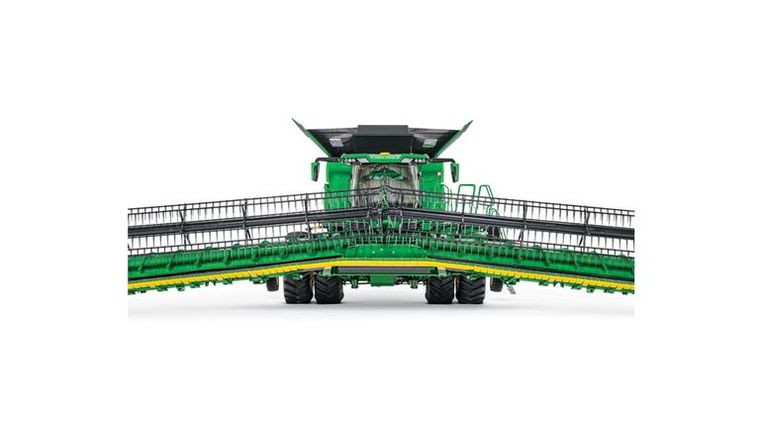

John Deere HDR45
$300
Available through TRULAND Equipment
- Category
- Draper
- Type
- Draper
- Condition
- New
| Cutterbar length | 13.7 m 45 ft |
| Knife drive | Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm 4 in. |
| Knife speed | X Series Combine: 520 cycles/min S-Series Combine: 490 cycles/min |
| Pickup reel operating speeds | 8-70 rpm |
| Draper belts speed control | Hydraulic from cab (side belts only) |
| Type | Hinged frame rigid cutterbar |
| Length | 13.7 m 45 ft |
| Base skid shoe height | 3.8 cm 1.5 in. |
| Number of slats | Six bat poly |
| Fingers | Nylon |
| Diameter | 106.7 cm 42 in. |
| Height control | Hydraulic |
| Speed control | Hydraulic |
| Reel lift | Off the cutterbar: 100.6 cm 39.6 in. |
| Reel fore and aft | Fore of the cutterbar: 26.4 cm 10.4 in. |
| Reel resume | Base |
| Reel reverse | Base |
| Operating speeds | 8-70 rpm |
| Width | Side belts: 5.9 m 19.3 ft Center belts: 200 cm 79 in. |
| Belt depth | 100 cm 39.8 in. |
| Cleat height | 19 mm 0.75 in. |
| Center belt reverse | Base |
| Feed drum fingers | Heavy-duty and round with breakaway notch and retainer Diameter: 16 mm 0.625 in. |
| Number of fingers | 18 |
| Auger finger platform | Triple chevron, retracting |
| Finger reach | 152 mm 6 in. |
| Drum/auger reverse | Base |
| Operating speed | Low speed: 200 rpm High speed: 240 rpm |
| Center cleanout door | Base |
| Header height sensing on the ground | Base |
| Header height sensing off the ground | Base |
| Fingered augers | Optional |
| Size | Diameter: 43.2 cm 17 in. |
| Platform length | 14.6 m 47.8 ft |
| Overall operating depth | With dividers: 3.2 m 10.6 ft |
| Date collected | 24 Mar 2021 |
