New
Draper

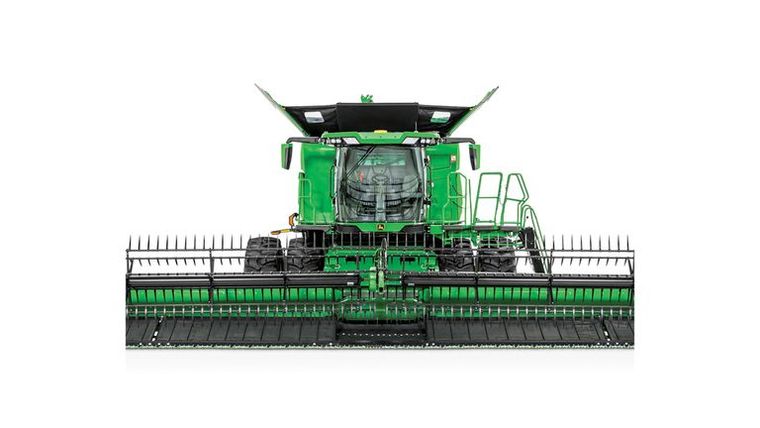

John Deere RDF30
Request price
Available through TRULAND Equipment
- Category
- Draper
- Type
- Draper
- Condition
- New
| Cutterbar length | 9.14 m 30 ft |
| Knife drive | Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm 4 in. |
| Knife speed | X Series Combine: 520 cycles/min S-Series Combine: 490 cycles/min |
| Pickup reel operating speeds | 6-70 rpm |
| Draper belts speed control | Hydraulic from cab (side belts only) |
| Type | Rigid frame flexible cutterbar |
| Length | 9.14 m 30 ft |
| Base skid shoe height | 3.8 cm 1.5 in. |
| General | One-piece, poly tine pickup reel with 10-in. (25-cm) tube |
| Number of slats | Base: six bat poly Optional: steel tine |
| Fingers | Base: nylon Optional: steel |
| Diameter | 106.7 cm 42 in. |
| Height control | Hydraulic |
| Speed control | Hydraulic |
| Reel lift | 72 cm 28.3 in. |
| Reel fore and aft | 35.9 cm 14.1 in. |
| Fore of the cutterbar | 40.6 cm 16 in. |
| Reel resume | Base |
| Reel reverse | Base |
| Operating speeds | 6-70 rpm |
| Width | Cross belt: 101.6 cm 40 in. Center belts: 177.8 cm 70 in. |
| Belt depth | 101.2 cm 39.8 in. |
| Cleat height | Cross belt cleat height: 19.05 mm 0.75 in. |
| Operating speed | Side belts (variable): 1-3.5 m/s 3.3-11.5 fps Center belts: 211 m/min 692 fpm Low-speed center belt (fixed): 4.2 m/s 13.8 fps High-speed center belt (fixed): 5.1 m/s 16.7 fps |
| Center belt reverse | Base |
| Feed drum fingers | Heavy-duty and round with breakaway notch and retainer Diameter: 16 mm 0.625 in. |
| Number of fingers | 21 |
| Auger finger platform | Triple chevron, retracting |
| Finger reach | 152 mm 6 in. |
| Drum/auger reverse | Base |
| Center cleanout door | Base |
| Header height sensing on the ground | Base |
| Header height sensing off the ground | Optional: three sensors |
| Size | 45.7 cm 18 in. |
| Platform length | 10.07 m 33 ft |
| Overall operating depth | With dividers: 2.74 m 9 ft |
| Transport width, field position | 10.07 m 33 ft |
| Approximate weight | 3447 kg 7600 lb |
| Date collected | 15 June 2020 |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere RDF30.
