New
Dr Planters

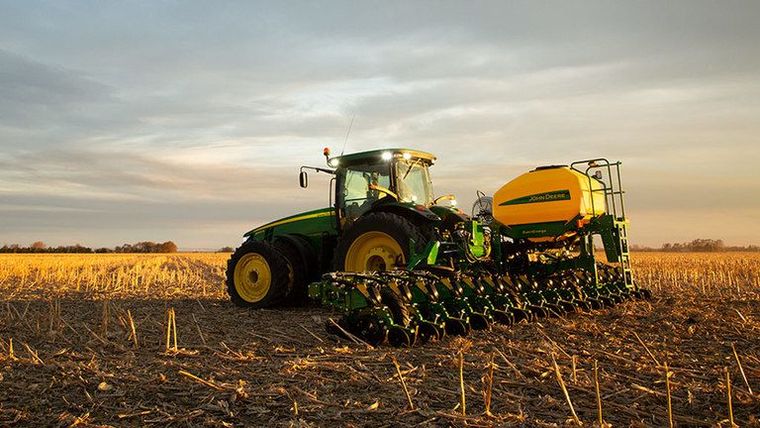

John Deere DR16
Request price
Available through TRULAND Equipment
- Category
- Dr Planters
- Type
- Dr Planters
- Condition
- New
| Number of rows | 16 |
| Row spacing | 40 in. |
| Fold configuration | 3-section, hydraulic over center stack-fold |
| Frame tube size | 17.8 x 17.8 cm 7 x 7 in. |
| Fold-and-go from tractor cab | Yes |
| Flexibility | 7.5 up and down degree (angle) |
| Type | Category 4N |
| Lift assist wheels | Base equipment. Heavy-duty lift-assist wheels for semi-integral operations |
| Tires | 2 - 12.5L-15SL 20 Ply |
| Number of cylinders | 2 |
| Base | 4 - 7.60-15, 6 PR traction implement |
| Optional | NA |
| Quantity | 4 on frame |
| Depth gauging | (2) semi-pneumatic wheels - 4 1/2 x 16 in. |
| Adjustment | T-handle, 1/4 to 4 depth in 1/4 increments in. |
| Walking wheels | Optional |
| Row unit seed hoppers | Capacity Mini hopper - 1/16 bu Material Plastic Mini hoppers |
| Row unit down force | Pneumatic Base equipment, infinitely adjustable to 400 lb Base equipment |
| Scrapers, opener blades | Steel straight blade Optional Heavy-duty Optional Optional |
| Seed tube sensors | Base equipment |
| Finger pickup | NA |
| Radial bean meter | NA |
| Central Commodity System | Seed capacity 100 bu Base equipment |
| Number of drive wheels | NA |
| Drive wheel disconnect | NA |
| Counter shaft | 7/8 hex in. |
| Drill shaft | 7/8 hex in. |
| Seed transmission | NA |
| Transmission combinations | NA |
| Rubber tire closing system | Wheel (2) rubber tires w/nylon wheel - 1 x 12 in. Position In-line or staggered Adjustment T-handle Down force 5-position Alignment Adjustable side-to-side Base equipment |
| Cast iron closing system | NA |
| Disk closing system | NA |
| Drag closing system | NA |
| Insecticide only hopper | NA |
| Herbicide only hopper | NA |
| Insecticide and herbicide hopper | NA |
| System available | NA |
| Unit-mounted coulter | Optional |
| Frame-mounted coulter | NA |
| Bubble blade | Optional |
| Onboard / towed / tractor tanks | NA |
| Transport width (with markers) | NA |
| Transport width (without markers) | 23, 8 ft, in. |
| Transport length | 13 ft |
| Transport height | 13, 2 ft, in. |
| Transport weight | 14,500 lb |
| Map-based seeding | Optional |
| Field documentation | Optional |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere DR16.
