New
Tillage Attachments

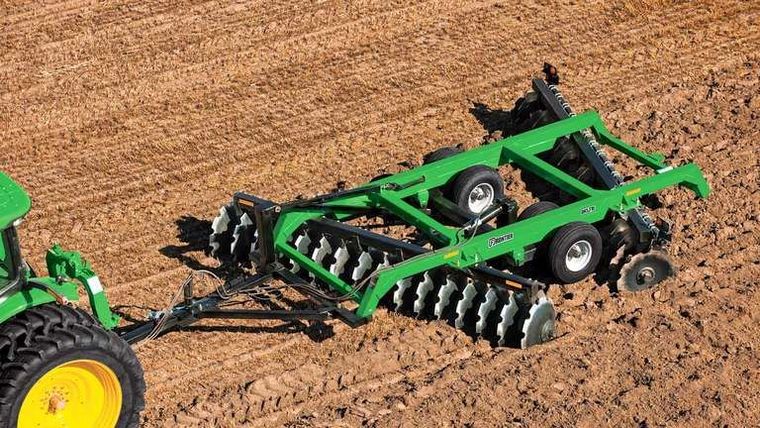

John Deere DH53 Series
Request price
Available through TRULAND Equipment
- Category
- Tillage Attachments
- Type
- Tillage Attachments
- Condition
- New
| Width | 3.4 m 11 ft |
| Ground clearance with base blades | 22.9 cm 9 in. |
| Wheel hub bearings | Dual Tapered Roller Bearings |
| Approximate working width | 3 m 10 ft |
| Maximum penetration | 22.9 cm 9 in. |
| Net | 3866.9 kg 8525 lb |
| Weight per disk blade | 203.7 kg 449 lb |
| Recommended PTO hp range | 105-132 kW 141-176 hp |
| Recommended drawbar hp range | 89.5-111.9 kW 120-150 hp |
| Type | Single Offset Rigid |
| Duty | Heavy |
| Tube size | 15.2x15.2x0.95 cm 6 x 6 x 3/8 in. |
| Front hitch type | Spade |
| Spacing | 30.5 cm 12 in. |
| Quantity | 21 |
| Blade concavity | Standard: high Optional: low |
| Blade option one | 711x9.5 mm 28x0.375 in. |
| Blade option two | 762x9.5 mm 30x0.375 in. |
| Blade option three | 813x9.5 mm 32x0.375 in. |
| Front angle | 2 Positions |
| Rear angle | 2 Positions |
| Axle size | 6.4 cm 2.5 in. |
| Axle material | Round Heat Treated Alloy Steel Threaded on Both Ends |
| Bearing type | Oil Bath Tapered Roller |
| Bearing wear plates | Standard |
| Bearing standards | Welded, Reinforced |
| Scrapers | Adjustable |
| Markings | SMV |
| Safety tow chain | Yes |
| Lights | Yes |
| Size | 12.5L x 15 10 ply in. |
| Wheel hub type | 8 Bolt |
| Labor hours | 2-3 for two people |
| Time period | 1 year |
