New
Tillage Attachments

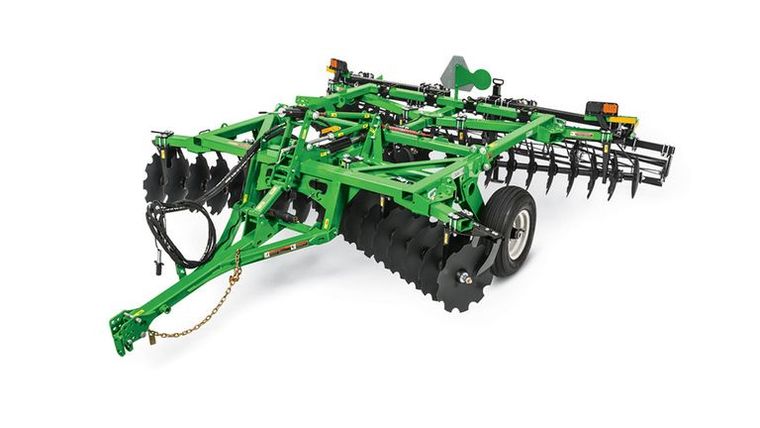

John Deere TM14D Series
Request price
Available through TRULAND Equipment
- Category
- Tillage Attachments
- Type
- Tillage Attachments
- Condition
- New
| Working Width | 96 in. |
| Overall Width, in. (cm) | 98 3/8 (250 cm) |
| Overall Height, in. (cm) | 48 (122 cm) |
| Overall Length, in. (cm) | 72 3/4 (185 cm) |
| Disk Spacing | 9 in. (22.9 cm) |
| Disk Thickness | 4.0 mm |
| Disk Diameter, in. (cm) | 22 in. |
| Number of Disks | 20 |
| Notched (front) / Notched (rear) | Optional |
| Notched (front) / Smooth (rear) | Optional |
| Operating Weight | 1346 lb |
| Weight per Disc (Approx.), lb (kg) | 65 |
| Engine HP Requirements | 45-100 |
| Gang / Frame Tubing | 4x3 Rectangle |
| Category | Category 1 & Category 2 |
| iMatch / Quick hitch | Yes |
| Type | Integral |
| Height to Hitch Pins, in. (cm) | 20 in. |
| Diameter, in. | 1-1/8 |
| Material | AISI 1045 |
| Front Gang Angles | 6, 11, 16, 21 degree (angle) |
| Rear Gang Angles | 4,9,14,19 degree (angle) |
| Bearing type | 1 1/8 SQ with steel flanges |
| Material Thickness | 3/16 U-shape x 3/8 Top plate |
| Approximate Assembly Time | 30 minutes |
| Scraper Kit | Option |
| Furrow Filler Kit | Option |
| Rolling Basket | Option |
