New
Tillage Attachments

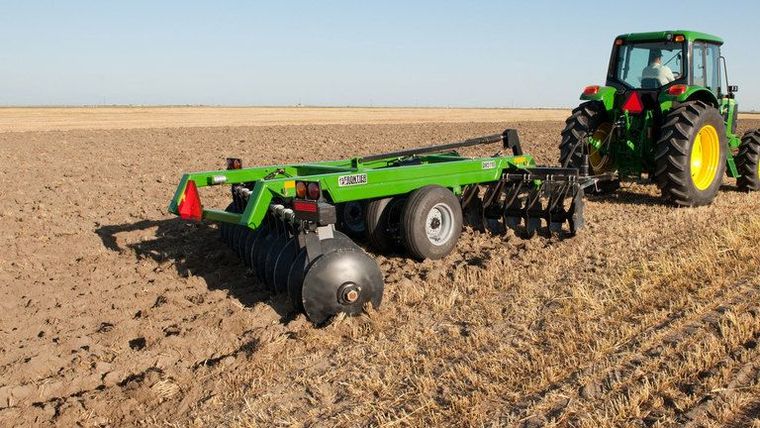

John Deere DH52 Series
Request price
Available through TRULAND Equipment
- Category
- Tillage Attachments
- Type
- Tillage Attachments
- Condition
- New
| Width | 6.1 m 20 ft |
| Ground clearance with base blades | 20.3 cm 8 in. |
| Wheel hub bearings | Dual tapered roller bearings |
| Approximate working width | 5.8 m 19 ft |
| Maximum penetration | 22.9 cm 9 in. |
| Net | 5012.2 kg 11050 lb |
| Weight per disk blade | 116.6 kg 257 lb |
| Recommended PTO hp range | 149-175 kW 200-235 hp |
| Recommended drawbar hp range | 126.8-149.1 kW 170-200 hp |
| Type | Single offset rigid |
| Duty | Medium |
| Tube size | 15.2x15.2x0.95 cm 6x6x0.375 in. |
| Front hitch type | Spade |
| Spacing | 26.7 cm 10.5 in. |
| Quantity | 45 |
| Blade concavity | Standard: high Optional: low |
| Blade option one | 660x7.9 mm 26x0.312 in. |
| Blade option two | 711x7.9 mm 28x0.312 in. |
| Front angle | 2 Positions |
| Rear angle | 2 Positions |
| Axle size | 4.1 cm 1.625 in. or 5.4 cm 2.125 in. |
| Axle material | Round heat treated alloy steel threaded on both ends |
| Bearing type | Oil Bbth tapered roller |
| Bearing wear plates | Standard |
| Bearing standards | Welded, Reinforced |
| Scrapers | Adjustable |
| Markings | SMV |
| Safety tow chain | Yes |
| Lights | Yes |
| Size | 12.5L x 15 10 ply in. |
| Wheel hub type | 8 Bolt |
| Labor hours | 2-3 for two people |
| Time period | 1 year |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere DH52 Series.
