New
Tillage Attachments

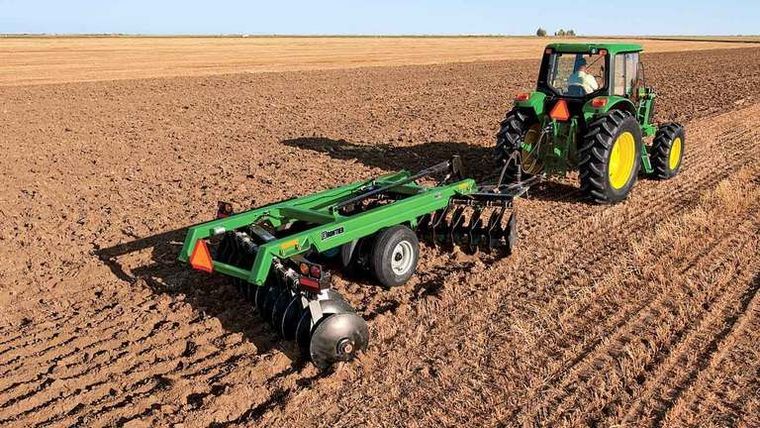

John Deere DH51 Series
Request price
Available through TRULAND Equipment
- Category
- Tillage Attachments
- Type
- Tillage Attachments
- Condition
- New
| Width | 4 m 13 ft |
| Ground clearance with base blades | 20.3 cm 8 in. |
| Wheel hub bearings | Dual Tapered Roller Bearings |
| Approximate working width | 3.7 m 12 ft |
| Maximum penetration | 22.9 cm 9 in. |
| Net | 2,887.1 kg 6,365 lb |
| Weight per disk blade | 115.7 kg 235 lb |
| Recommended PTO hp range | 96-118 kW 129-159 hp |
| Recommended drawbar hp range | 82-100.7 kW 110-135 hp |
| Type | Single Offset Rigid |
| Duty | General Purpose |
| Tube size | 12.7x12.7x0.95 cm 5x5x0.375 in. |
| Front hitch type | Spade |
| Spacing | 26.7 cm 10.5 in. |
| Quantity | 27 |
| Blade concavity | Standard high, Optional low |
| Blade option one | 660x7.9 mm 26x0.312 in. |
| Blade option two | 711x7.9 mm 28x0.312 in. |
| Front angle | 2 Positions |
| Rear angle | 2 Positions |
| Axle size | 4.1 cm 1.625 in. or 5.4 cm 2.125 in. |
| Axle material | Round Heat Treated Alloy Steel Threaded on Both Ends |
| Bearing type | Oil Bath Tapered Roller |
| Bearing wear plates | Standard |
| Bearing standards | Welded, Reinforced |
| Scrapers | Adjustable |
| Markings | SMV |
| Safety tow chain | Yes |
| Lights | Yes |
| Size | 9.5L x 15-in. 8 ply |
| Wheel hub type | 6 Bolt |
| Labor hours | 2-3 for two people |
| Time period | 1 year |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere DH51 Series.
