| Engine Make | John Deere |
| Engine Model | JD14 |
| Engine Family | SJDXL13.5334 |
| Displacement (L) | 13.6 |
| Displacement (cu in.) | 827 |
| Rated Engine Power (hp) | 533 |
| Rated Engine Power (kw) | 397 |
| Rated Engine Power (PS) | 540 |
| Transmission Type | eAutoPowr™ Electric Variable Transmission (EVT) |
| Rear Hitch Category (SAE Designation) | Category 4N/3 |
| Pump Rated Output | 418 L/min 110 gpm |
| Base Machine Weight (lb) | 43,193 |
| Base Machine Weight (kg) | 19,592 |
| Wheel or Track Configuration | Wheel |
| Drive Type | MFWD |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
| Number of Cylinders | Six |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) |
| Intelligent Power Management (IPM) | 40 |
| Rated Engine Speed (rpm) | 1,900 |
| Rated Engine Power (kW) | 397 |
| Rated Engine Power with IPM (hp) | 572 |
| Rated Engine Power with IPM (kw) | 427 |
| Rated Engine Power with IPM (PS) | 580 |
| Maximum Engine Speed (rpm) | 1,900 |
| Maximum Engine Power (hp) | 585 |
| Maximum Engine Power (kW) | 437 |
| Maximum Engine Power (PS) | 594 |
| Maximum Engine Power with IPM (hp) | 625 |
| Maximum Engine Power with IPM (kW) | 466 |
| Maximum Engine Power with IPM (PS) | 634 |
| Maximum Engine Torque | 2,695 Nm |
| Constant Power Range | 1,450 - 1,900 rpm |
| Power Bulge (%) | 10 |
| Bore and Stroke (in.) | 5.2 x 6.5 |
| Bore and Stroke (mm) | 132 x 165 |
| Compression Ratio | 15:9:1 |
| Lubrication | Full-pressure, full-flow filtration with bypass |
| Cooling System Type | Liquid |
| Fuel Type | Ultra-low sulfur diesel |
| Alternative Fuel Type | B30 diesel |
| Air Cleaner Type | Dual stage with exhaust aspiration |
| Torque Rise (%) | 35 |
| Maximum Speed Forward | 60 km/h 37 mph |
| Minimum Speed Forward | 0.05 km/h 0.03 mph |
| Reverser | Left and right hand |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

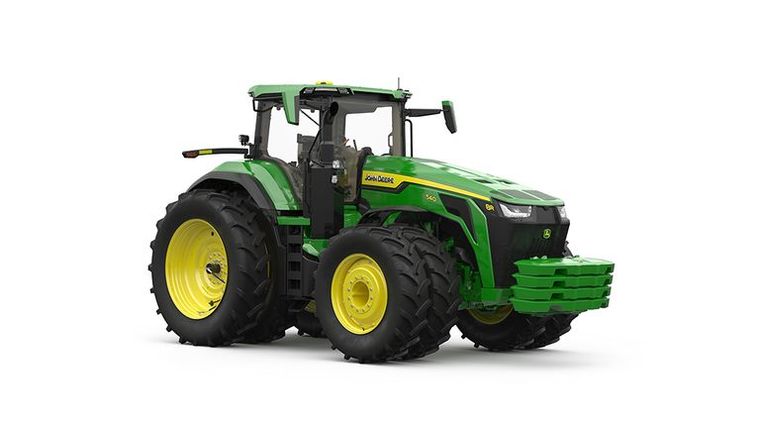

Tell us what you want to know about the John Deere 8R 540.
