| Engine Make | John Deere |
| Engine Model | JD9 |
| Engine Family | VJDXL09.0333 |
| Displacement (L) | 9 |
| Displacement (cu in.) | 549 |
| Rated Engine Power (hp) | 365 |
| Rated Engine Power (kw) | 272 |
| Rated Engine Power (PS) | 370 |
| Maximum Engine Power (hp) | 401 |
| Maximum Engine Power (kW) | 299 |
| Maximum Engine Power (PS) | 407 |
| Rear Hitch Category (SAE Designation) | Category 4N/3 |
| Pump Rated Output | Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm |
| Base Machine Weight (lb) | 28,000 |
| Base Machine Weight (kg) | 12,700 |
| Wheel or Track Configuration | Wheel |
| Drive Type | MFWD |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Dual turbochargers, variable geometry turbo with fixed geometry turbo in series; air-to-air aftercooling and cooled exhaust gas recirculation |
| Number of Cylinders | Six |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR) |
| Rated Engine Speed (rpm) | 2,100 |
| Rated Engine Power (kW) | 272 |
| Engine Torque at Rated Speed (lb-ft) | 1,277 |
| Engine Torque at Rated Speed (Nm) | 1,732 |
| Maximum Engine Torque | At 1,600 rpm: 1,732 Nm 1,277 lb-ft |
| Power Bulge (%) | 10 |
| Fuel Type | Diesel |
| Alternative Fuel Type | B30 Diesel Compatible |
| Torque Rise (%) | 40 |
| Maximum Speed Forward | 50 km/h 31 mph |
| Minimum Speed Forward | 0.05 km/h 0.03 mph |
| PTO Category | Standard: 45 mm 1.75 in. 20-spline, 1,000 rpm Optional: 45 mm 20-spline, 1000/1000E rpm |
| Rated PTO Power (hp) | 310 |
| Rated PTO Power (kW) | 231 |
| Rated PTO Power (PS) | 314 |
| Economy PTO Speeds | 1,000E rpm |
| Engine rpm at Rated PTO Speeds (540/1.000) | 1,810 / 1,995 |
| Engine rpm at Rated PTO Speeds (540E/1000/1.000E) | -- / 1,995 / 1,590 |
| Engagement Method | Electrohydraulic with adjustable modulation |
| Number of Splines | 20 |
| PTO Speed | 1,000 rpm |
| Front PTO Rotation | 35 mm 1.375 in. 21 spline, 1,000 rpm 45 mm 1.75 in. 20 spline, 1,000 rpm (available through parts only) 6 spline, 1,000 rpm (available dependent on location) |
| Engine rpm (at Rated PTO Speeds) | 2,000 |
| Front Hitch Category | Category 3N |
| Maximum Lift Capacity at 610-mm Behind Hitch Point | 9,072 kg 20,000 lb |
| Sensing Type | Electrohydraulic |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

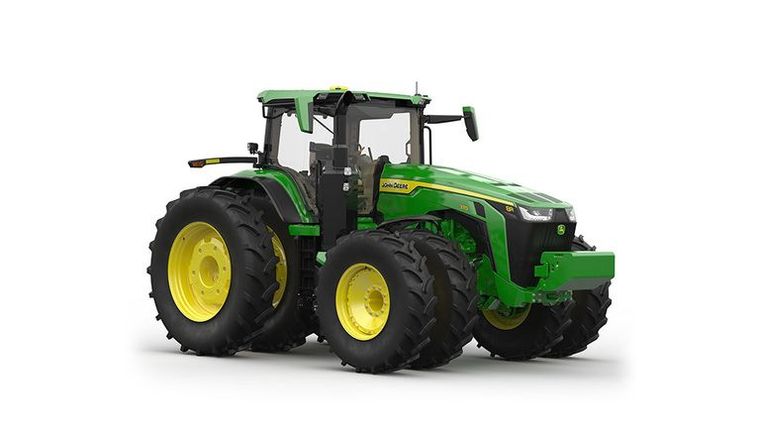

Tell us what you want to know about the John Deere 8R 370.
