| Engine displacement | 9.0 L 549 cu in. |
| Rated engine power | ECE-R120: 243 kW 330 hp |
| Maximum engine power | ECE-R120: 267 kW 363 hp |
| Rated PTO power (hp SAE) | 193.9 kW 260 hp |
| Hydraulic pump rated output | Standard: 63 cc: 162 L/min 43 gpm Optional: 85 cc: 222.3 L/min 59 gpm |
| Rear hitch category (SAE designation) | Standard: Category 3N/3 with Quik-Coupler Optional: Category 3/3N with hook ends Category 4N/3 with Quik-Coupler Category 4N/3 with hook ends |
| Base machine weight | e23, TLS™, 18.4R46: 10,000 kg 22,000 lb |
| Engine type | Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves in head |
| Engine family | MJDXL09.0319 |
| Rated speed | 2100 rpm |
| Aspiration | Single turbocharger, variable geometry turbo |
| Emission level | Final Tier 4 |
| After treatment type | Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF) |
| Displacement | 9.0 L 549 cu in. |
| Rated power | ECE-R120: 243 kW 330 hp |
| Power boost | IPM: 27 kW 30 hp |
| Engine peak torque | At 1600 rpm: 1,545 Nm 1,139 lb-ft |
| PTO torque rise | 40 percent |
| Type | Closed-center, pressure/flow compensated system with load sensing |
| Pump rated output | Standard: 63 cc: 162 L/min 43 gpm Optional: 85 cc: 222.3 L/min 59 gpm |
| Available flow at a single rear SCV | 132 L/min 35 gpm |
| Available flow at front SCVs | 126 L/min 33 gpm |
| Number of rear selective control valves (SCVs) | Standard: Four SCVs Optional: Three to five ISO couplers: 12.7 mm 1/2 in. Five ISO couplers (SCV 1-5: 12.7-mm [1/2-in.] coupler) |
| Number of front selective control valves (SCVs) | One with front hitch |
| SCV control | Electronic |
| Hitch category (SAE designation) | Standard: Category 3N/3 with Quik-Coupler Optional: Category 3/3N with hook ends Category 4N/3 with Quik-Coupler Category 4N/3 with hook ends |
| Sensing type | Electrohydraulic |
| Drawbar category | Standard: Category 4 |
| Maximum vertical load | Standard: Category 3: 1,837 kg 4,050 lb Optional: Category 3 with heavy-duty support: 4,536 kg 10,000 lb |
| Engine rpm (at rated PTO speeds) | 540/1000 PTO rpm at 1950 engine rpm 540E/1000E PTO rpm at 1750 engine rpm |
| PTO actuation | Electric switch with adjustable modulation |
| Category | Category 3N, ground engaging |
| Electric power | Seven-pin connector |
| Standard lift capacity | 5,200 kg 11,464 lb |
| PTO speed | 1,000 PTO rpm at 1940 engine rpm |
| Final drive type | Inboard planetary three pinion |
| Rear differential lock | Full-locking electrohydraulic |
| Front axle differential lock | 1300 Series MFWD: Limited slip TLS: Limited slip TLS with front brakes: Full-locking electrohydraulic (actuated at same time as rear diff lock) |
| Rear | RCI Group 48/49 |
| Turning radius with brakes | 600/70R30 group 43 tires at 188.2-cm (74.1-in.) spacing, TLS: 6.7 m 22 ft 620/75R30 group 44 tires at 208.3-cm (82-in.) spacing, TLS: 8.7 m 28.5 ft |
| Alternator size | Standard: 210 amp Optional: 250 amp |
| Battery options | 12 V |
| Working lights | Standard: 18 halogen Available: 18 LED or 22 LED |
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: 65-W halogen Available: LED |
| Total cold cranking amps | With two 925 CCA group 31 batteries: 1850 CCA |
| Seat | Degree of seat swivel, left hand Optional: 25 degree Degree of seat swivel, right hand 40 degree Standard: Air seat Optional: ActiveSeat™ II |
| Cab suspension | Optional: Adjustable cab suspension |
| Instructional seat | Standard |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

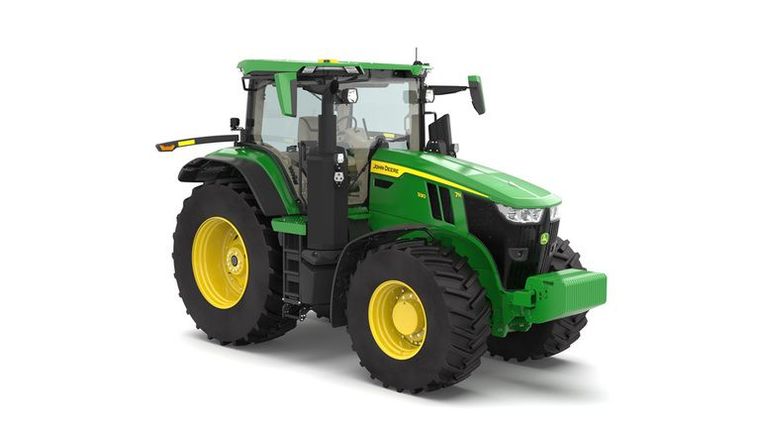

Tell us what you want to know about the John Deere 7R 330.
