| Visibility packages | Select Premium Ultimate |
| Lighting | 18 LED work lights 18 LED work lights 22 LED work lights and eight LED convenience lights** |
| Mirrors | Mechanical Electric, heated Electric, heated, and telescoping |
| Sunshades | Front Front, right-hand side, and rear Front, right-hand side, and rear |
| Wipers | Front and rear Front, right-hand side, and rear Front, right-hand side, and rear |
| Cameras | Camera ready Camera ready Integrated digital cameras |
| 1 | Accelerate Decelerate |
| 2 | Top set speed Zero speed |
| 3 | Decelerate Accelerate |
| 4 | Zero speed Accelerate |
| 5 | Activate set speed |
| 6 | Select direction |
| 7 | Inching speed |
| 8 | Inching speed |
| Large tractor equipment | Precision Technology JDLink |
| Engine displacement | 6.8 L 415 cu in. |
| Rated engine power | ECE-R120: 169 kW 230 hp |
| Maximum engine power | ECE-R120: 186 kW 253 hp |
| Rated PTO power (hp SAE) | 135 kW 182 hp |
| Hydraulic pump rated output | Standard: 63 cc: 162 L/min 43 gpm Optional: 85 cc: 222.3 L/min 59 gpm |
| Rear hitch category (SAE designation) | Standard: Category 3/3N with Quik-Coupler Optional: Category 3/3N with hook ends |
| Base machine weight | e23, TLS™, 18.4R46: 10,000 kg 22,000 lb |
| Engine type | Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head |
| Engine family | MJDXL06.8309 |
| Rated speed | 2100 rpm |
| Aspiration | Dual turbochargers, variable geometry turbo with fixed geometry turbo in series |
| Emission level | Final Tier 4 |
| After treatment type | Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF) |
| Displacement | 6.8 L 415 cu in. |
| Rated power | ECE-R120: 169 kW 230 hp |
| Power boost | IPM: 24 kW 30 hp |
| Engine peak torque | At 1600 rpm: 1077 Nm 794 lb-ft |
| PTO torque rise | 40 percent |
| Type | Closed-center, pressure/flow compensated system with load sensing |
| Pump rated output | Standard: 63 cc: 162 L/min 43 gpm Optional: 85 cc: 222.3 L/min 59 gpm |
| Available flow at a single rear SCV | 132 L/min 35 gpm |
| Available flow at front SCVs | 126 L/min 33 gpm |
| Number of rear selective control valves (SCVs) | Standard: Four SCVs Optional: Three to five ISO couplers: 12.7 mm 1/2 in. Five ISO couplers (SCV 1-5: 12.7-mm [1/2-in.] coupler) |
| Number of front selective control valves (SCVs) | One with front hitch |
| SCV control | Electronic |
| Hitch category (SAE designation) | Standard: Category 3/3N with Quik-Coupler Optional: Category 3/3N with hook ends |
| Maximum lift capacity behind lift points | Standard (Category 3): 5443 kg 12,000 lb Optional (Category 3N): 6894 kg 15,200 lb Standard (Category 3 with hook ends): 5443 kg Optional (Category 3 with hook ends): 6894 kg 15,000 lb |
| Sensing type | Electrohydraulic |
| Drawbar category | Standard: Category 3 Optional: Category 3 with heavy-duty support Category 4 |
| Maximum vertical load | Standard: Category 3: 1837 kg 4050 lb Optional: Category 3 with heavy-duty support: 4536 kg 10,000 lb |
| Engine rpm (at rated PTO speeds) | 540/1000 PTO rpm at 1950 engine rpm 540E/1000E PTO rpm at 1750 engine rpm |
| PTO actuation | Electric switch with adjustable modulation |
| Category | Category 3N, ground engaging |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

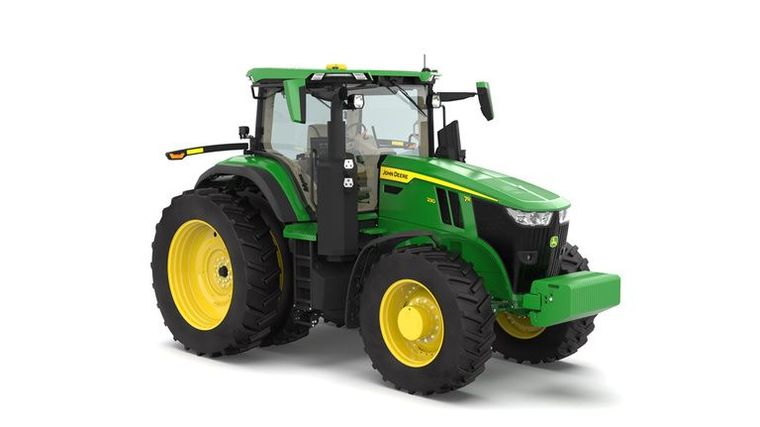

Tell us what you want to know about the John Deere 7R 230.
