| Engine displacement | 6.8 L 415 cu in. |
| Rated PTO power (hp SAE) | 96 kW 129 hp |
| Hydraulic pump rated output | Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm |
| Rear hitch category (SAE designation) | Category 3/3N: 4170 kg 9193 lb |
| Base machine weight | 7100 kg 15,653 lb |
| Engine type | Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head |
| Engine family | NJDXL06.8324 |
| Rated speed | 2100 rpm |
| Aspiration | Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation |
| Emission level | Final Tier 4 |
| After treatment type | DOC/DPF/SCR |
| Displacement | 6.8 L 415 cu in. |
| Intelligent Power Management (IPM) | Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp |
| Power boost | 10 percent |
| Engine peak torque | At 1,600 rpm: 773 Nm 570 lb-ft |
| PTO torque rise | 40 percent |
| Type | IVT, 0.05-42 km/h 0.03-26 mph IVT, 0.05-50 km/h 0.03-31 mph |
| Reverser | Left-hand electrical reverser |
| Pump rated output | Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm |
| Available flow at a single rear SCV | 100 L/min 26 gpm |
| Number of rear selective control valves (SCVs) | Standard: Three ISO couplers Optional: Three to five ISO couplers |
| Number of mid selective control valves (SCVs) | Up to three |
| Joystick SCV control | Available |
| SCV control | Standard: Mechanical Optional: Electronic |
| Remote control valves available | Available: Remote control switch |
| Hitch category (SAE designation) | Category 3/3N: 4170 kg 9193 lb |
| Maximum lift capacity behind lift points | 4200 kg 9259 lb |
| Sensing type | Electrohydraulic |
| Rear axle differential lock | Electrohydraulic |
| Drawbar category | Category 2 |
| Maximum vertical load | Category 2: 1400-2450 kg 3085-5400 lb Maximum vertical load dependent on drawbar position |
| Engine rpm (at rated PTO speeds) | 1967 engine rpm at 540 rpm PTO 1753 engine rpm at 540E rpm PTO 2000 engine rpm at 1000 rpm PTO |
| PTO actuation | Electrical modulation |
| Category | Category 3N |
| Electric power | Seven-pin electrical socket Optional: Three-pin and ISOBUS socket |
| Standard lift capacity | At hook ends: 3300 kg 7275 lb |
| Front power take-off (PTO) | 1000 rpm, clockwise rotation (from driving position) |
| PTO speed | Engine at PTO speed (1000): 1969 rpm |
| Final drive type | Inboard planetary three pinion |
| Differential controls | Full-locking electrohydraulic |
| Front axle differential lock | MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic |
| Rear | 480/80R42 R1/R1W Radial |
| Wheel tread range | MFWD: 1524-2235 mm 60-88 in. TLS: 1524-2235 mm 60-88 in. |
| Alternator size | Standard: 200 amp Optional: 250 amp |
| Battery options | 12 V |
| Working lights | Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen |
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: 65-W halogen W Optional: LED |
| Total cold cranking amps | 1230 CCA With cold weather package or IVT: 1400 CCA |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

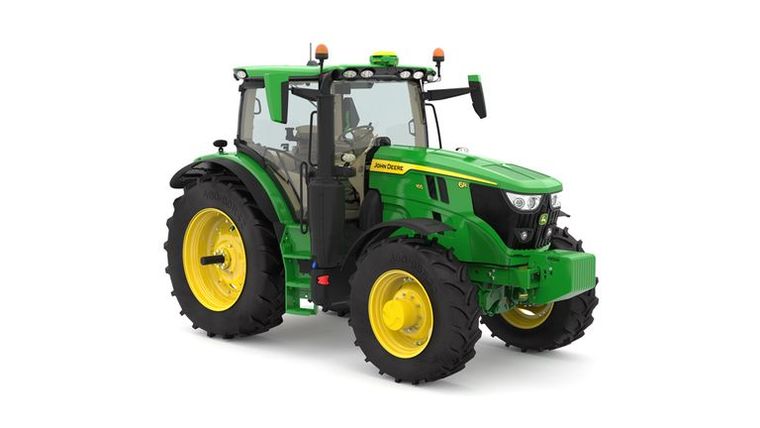

Tell us what you want to know about the John Deere 6R 165.
