| Width | Overall width: 48.2 in. 1225 mm Clearing width: 47 in. 1194 mm |
| Height of opening | 20 in. 508 mm |
| Height to top of chute deflector | 42.5 in. 1080 mm |
| Housing depth | 16.8 in. 427 mm |
| Housing thickness | 0.075 in. 1.9 mm |
| Side panel thickness | 0.194 in. 4.94 mm |
| Diameter | 16 in. 406 mm |
| Speed | 172 rpm |
| Drive | Splined-coupler PTO shaft to enclosed roller chain |
| Auger drive gearbox | Cast-iron bevel gearcase with 1-in. (25-mm) output shafts |
| Protection | Shear bolt for each auger half, four shell-mounted extra shear bolts |
| Drift knife | One in base, optional second |
| Blower fan material | Ultra-high molecular weight (UHMW) polyethylene |
| Blower fan size | 4.67 x 15 in. 119 x 381 mm |
| Bearing | Sealed ball bearings |
| Type | Reversible and replaceable |
| Lift height | 11 in. 27.9 cm |
| Rotation | 200 degree (angle) |
| Rotation control | Hydraulic remote control |
| Approximate weight | 240 lb 110 kg |
| Attaching time | No tools required: 5 minutes |
| Date collected | 3-Nov-2021 |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

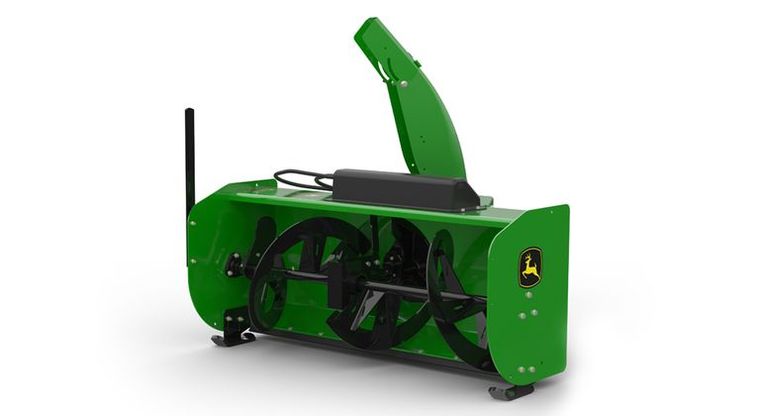

Tell us what you want to know about the John Deere 47-in. Quick-Hitch Snow Blower.
