New
Hagie Sprayers

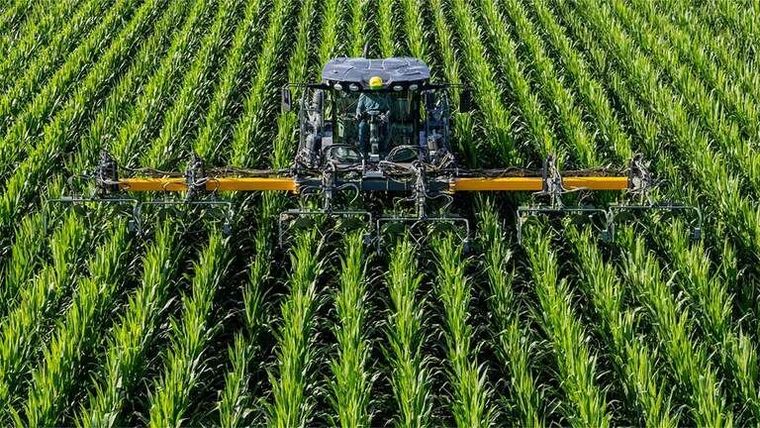

John Deere 204SP
Request price
Available through TRULAND Equipment
- Category
- Hagie Sprayers
- Type
- Hagie Sprayers
- Condition
- New
| Key specifications Row configurable | 12 (9.1 m [30 ft]) to 15 (11.43 m [37.5ft]) |
| Section sonfigurable | 1-4 sections |
| Slide gate control | Manual lever |
| Controller | Montag MTC200 controller |
| Product capacity (bin) | 0.85 m 3 (30-cu ft) bin: 0.99 m 3 (34.8-cu ft), 1.11 ton* (2447.13 lb) |
| Rate capacity (bin) | See 2108 rate chart at www.montagmfg.com |
| 2108 weight** | 385.55 kg (850 lb) to 453.6 kg (1,000 lb) |
| Fill height | 3.6 m (12 ft) |
| Product fill inlet size | 0.97 m (3.2 ft) |
| Product outlet hose size | 5.08 cm (2 in.) |
| Required hydraulic capacity | 52.99 L/min (14 gpm) |
| Required hydraulic pressure | 137.89 bar (2000 psi) |
| Engine | Peak rated power 129 kW 173 hp |
| Detasseling speed range | Low range: 0 to 16.1 km/h 0 to 10 mph High range: 0 to 20.9 km/h 0 to 13 mph |
| Transport speed, maximum | 20.9 km/h 13 mph |
| Suspension | Independent air-ride |
| Crop clearance with standard tires | 195.6 cm 77 in. |
| Peak rated power | 129 kW 173 hp |
| Emissions | Final Tier 4 (FT4)/Stage V |
| Number of cylinders | Four |
| Displacement | 4.5 L 275 cu in. |
| Alternator | 120 amp |
| Fuel tank capacity | 340.7 L 90 gal. |
| Diesel exhaust fluid (DEF) tank capacity | 21.6 L 5.7 gal. |
| Glass | 5.45 m 2 58.7 sq ft |
| Seat | Air suspension |
| Instructional seat | Standard |
| Windshield wiper | Single blade |
| Toolbar outriggers | 12-row: 340.4 cm 134 in. |
| Row configurations | 12 |
| Detasseling control system | Tasseltrol |
| Cutter height range | Lower lift position range: 72.4 to 237.9 cm 28.5 to 93.7 in. Upper lift position range: 92.2 to 257.8 cm 36.3 to 101.5 in. |
| Puller height range | Lower lift position range: 62.9 to 228.6 cm 24.8 to 90 in. Upper lift position range: 82.8 to 248.4 cm 32.6 to 97.8 in. |
| Quad Puller operating speed | Factory setpoint: 450 rpm |
| Cutter operating speed | Factory setpoint: 2800 rpm |
| Option 1 | Quad puller - 12 Row 6 Lift Row spacing: 76.2 cm 30 in. |
| Option 2 | Cutter - 12 Row 6 Lift Row spacing: 76.2 cm 30 in. |
| Type | Hydrostatic |
| Drive | Full-time four-wheel drive (4WD) |
| Shifting | Dual speed range |
| Hydraulic reservoir capacity | 65.3 L 17.25 gal. |
| Dry compatible | No |
| Front tires | Titan® 12.4 x 38 |
| Rear tires | Titan 12.4 x 38 |
| Hydraulic tread adjust | Manual only |
| Wheel tread spacing | 254 to 304.8 cm 100 to 120 in. |
| Wheelbase | 307.3 cm 121 in. |
| Turning radius | 5.5 m 18 ft |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 204SP.
