New
2 Family 24 36Hp

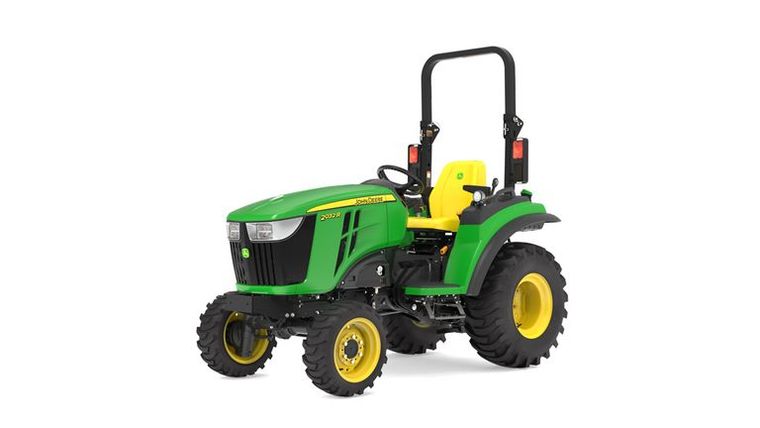

John Deere 2032R
Request price
Available through TRULAND Equipment
- Category
- 2 Family 24 36Hp
- Type
- 2 Family 24 36Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 22.9 kW 30.7 hp 31.2 PS at 2500 rpm |
| Power take-off (PTO) power | 18 kW 24.2 hp |
| Steering hydraulics | 15 L/min 4 gpm |
| Implement hydraulics | 20.2 L/min 5.3 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 615 kg 1356 lb |
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open station: 1306 kg 2879 lb Cab: Not applicable |
| Wheelbase | 1723 mm 67.8 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV88C-NJT2 |
| Rated engine speed | 2500 rpm |
| Type | Direct Injection |
| Injection pump type | Direct Injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 1.642 L 100.2 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 88x90 mm 3.46x3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Water pump |
| Air cleaner | Dual element |
| Engine torque at rated speed | 87.5 Nm 64.5 lb-ft |
| Fuel tank capacity | 32 L 8.5 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 85 amp |
| Starter size | 1.4 kW 1.9 hp |
| Final drive | Spur gear |
| Brakes | Wet disc |
| Steering | Power steering |
| Axle capacity | Front 880 kg 1940 lb Rear 1800 kg 3968 lb |
| Creeper | No |
| Differential lock | Yes |
| Pump rated output | Steering 15 L/min 4 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm |
| Pump type | Dual gear |
| Maximum operating pressure | 172 bar 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to three |
| Standard | Rear: 543 rpm Mid: 1998 rpm |
| Control | Independent |
| Clutch | Wet disc |
| Brake (for mid and rear PTO) | Wet disc |
| Crankcase with filter | 4.5 L 4.8 gal. |
| Rollover protective structure | Type Foldable ASABE S478 |
| Platform - flat/straddle | Semi-flat |
