New
2 Family 24 36Hp

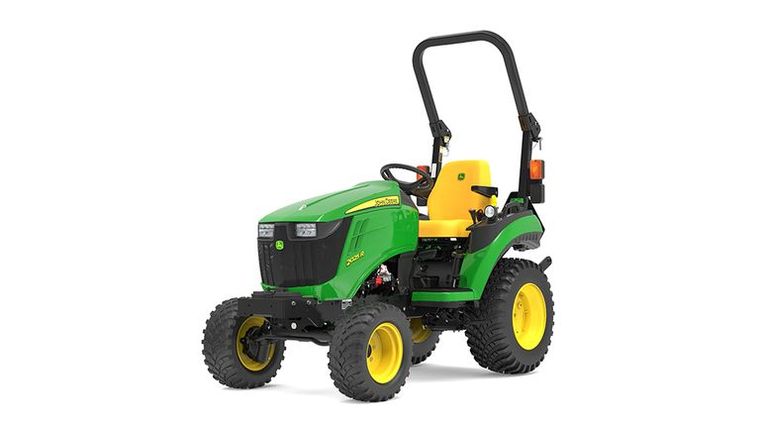

John Deere 2025R
Request price
Available through TRULAND Equipment
- Category
- 2 Family 24 36Hp
- Type
- 2 Family 24 36Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm |
| Power take-off (PTO) power | 13.6 kW 18.2 hp |
| Steering hydraulics | 13.4 L/min 3.5 gpm |
| Implement hydraulics | 13.4 L/min 3.5 gpm |
| Hitch type | Limited Category 1 |
| Lift capacity, 24-in. behind link arms | 415 kg 915 lb |
| Standard transmission; forward/reverse | Hydrostatic - two range |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open station: 849 kg 1872 lb Cab: 1085 kg 2392 lb |
| Wheelbase | 1600 mm 63 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV80F-NCJT |
| Rated engine speed | 3200 rpm |
| Type | Diesel |
| Injection pump type | Indirect injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 1.267 L 77 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 80 x 84 mm 3.2 x 3.3 in. |
| Compression ratio | 23.1:01 |
| Lubrication | Pressurized |
| Cooling system | Water pump |
| Air cleaner | Dual element |
| Engine torque at rated speed | 53.1 Nm 39.1 lb-ft |
| Fuel tank capacity | 20.4 L 5.39 gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 40 amp |
| Starter size | 1.2 kW 1.6 hp |
| Left-hand reverser | No |
| Final drive | Spur gear |
| Brakes | Wet disc |
| Steering | Power steering |
| Axle capacity | Front 612 kg 1349 lb Rear 1100 kg 2425 lb |
| Creeper | No |
| Differential lock | Yes |
| Pump rated output | Steering 13.25 L/min 3.5 gpm Implement 13.25 L/min 3.5 gpm 26.5 L/min 7.0 gpm |
| Pump type | Gear |
| Maximum operating pressure | 137 bar 1987 psi |
| Draft control sensing | Position control |
| Remote control valves available | Two |
| Standard | Rear - 540 rpm Mid - 2100 rpm |
| Control | Independent |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 2.7 L 2.9 gal. |
| Rollover protective structure | Type Foldable OSHA, SAE, ASAE |
