| Number of rows | 23 |
| Row spacing | 38 cm 15 in. |
| Frame - Flexibility | Up and down: 15 degree (angle) |
| Row unit seed hoppers | Capacity 2.2 L 0.062 bu |
| Seed Meters | Base Vacuum |
| Flexibility | Up and down: 15 degree (angle) |
| Type | Wheel modules with rephasing hydraulic cylinders |
| Base | Wing tires: VF245/70R19.5 Center tires: VF295/75R22.5 |
| Opener | Tru-Vee™ double disk |
| Central Commodity System | Seed capacity Without liquid tank: 3524 L 100 bu With liquid tank: 2467 L 70 bu |
| Tank capacity | 1590 lb 420 gal. |
| ExactRate Fluid Transfer System | Available |
| Transport width (with markers) | 4043 mm 159.2 in. |
| Transport length | 8914 mm 351 in. |
| Transport height | 4111 mm 161.8 in. |
| Field operation width | 9874 mm 388.7 in. |
| Field operation length | 7151 mm 281.5 in. |
| Recommended tractor horsepower | Minimum required for 9.1 m (30 ft) models: 201 kW 270 hp Minimum required for 12.2 m (40 ft) models: 268 kW 360 hp |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

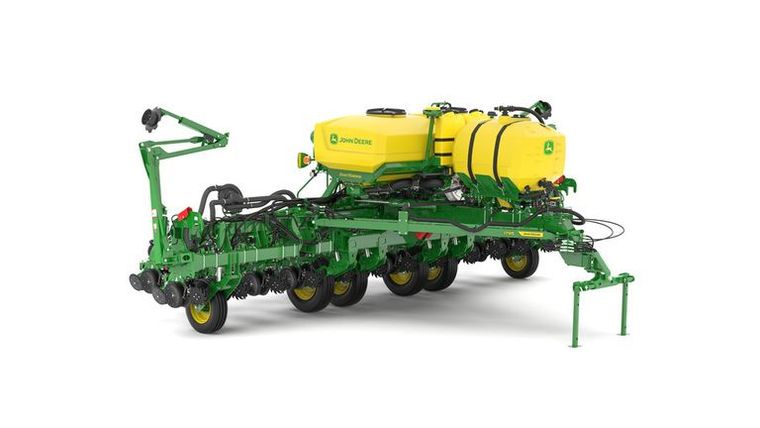

Tell us what you want to know about the John Deere 1795 12Row Split 23 or 24.
