| Model | Model year |
| 1775NT 2 Point | Model year 2018-current |
| 1775NT Drawbar | Model year 2018-current |
| DB60 36R | Model year 2018-Model year 2024 |
| DB90 36R | Model year 2018-Model year 2024 |
| All other DB's (except above) 36+ Rows | Model year 2018-current |
| All other DB's (except above) | Model year 2018-current |
| 1725C Mounted | Model year 2025-current |
| 1795 2 POINT HITCH | Model year 2018-current |
| 1795 DRAWBAR | Model year 2018-current |
| Number of rows | 24 |
| Row spacing | 76 cm 30 in. |
| Frame - Flexibility | Up and down: 21 degree (angle) |
| Row unit seed hoppers | Capacity 2.2 L (0.062 bu) 58 L (1.65 bu) 106 L (3.0 bu) |
| Seed Meters | Base Vacuum Finger pickup Optional |
| Flexibility | Up and down: 21 degree (angle) |
| Type | Wheel modules with hydraulic cylinders |
| Base | Implement tire: VF295/75R22.5 |
| Optional | Factory-installed Soucy tracks |
| Opener | Tru-Vee double disk |
| Finger pickup | Optional |
| Radial bean meter | Optional |
| Central Commodity System | Seed capacity 4581 L 130 bu |
| Tank capacity | 2271 L 600 gal. |
| ExactRate Fluid Transfer System | Available |
| Transport width (with markers) | 3500 mm 137.8 in. |
| Transport length | 13320 mm 524.4 in. |
| Transport height | 3588 mm 141.26 in. |
| Field operation width | 18977 mm 747.1 in. |
| Field operation length | 8862 mm 348.9 in. |
| Recommended tractor horsepower | Minimum tractor size required: 90 kW 120 PTO hp Operating with extra planter attachments or when planting in soft seedbeds and rolling ground, more tractor power is required. |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

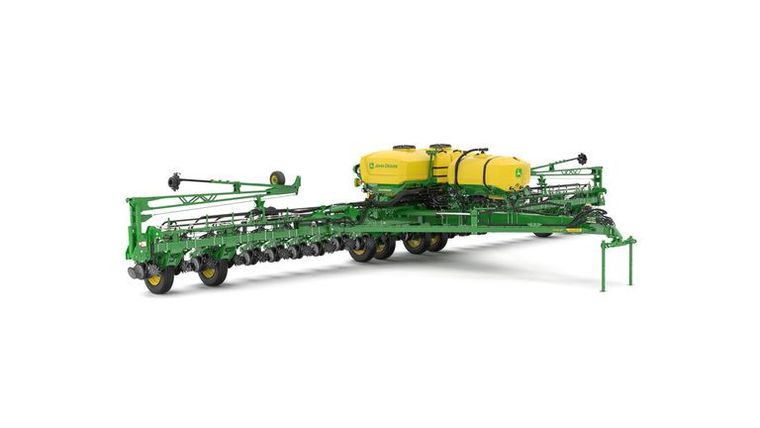

Tell us what you want to know about the John Deere 1775NT 24Row30.
