| Engine Manufacturer/model | 3TNV80F |
| Engine Power | Gross PS: 25 hp 18.4 kW |
| Fuel tank capacity | 16 U.S. gal. 60.6 L |
| Mower deck Size | 60 or 72 in. 152 or 183 cm |
| Blade tip speed | 18,000 fpm 5,486 m/min |
| Transmission | Hydrostatic 2WD, optional full time or on demand 4WD |
| Speed range | 0-12 mph 0-19.3 km/h |
| Drive wheels | 23x10.5-12 Optional: 23x8.5-12 |
| Caster wheels | Flat free, 11x4-5 |
| Warranty | 24 months |
| Manufacturer/model | 3TNV80F |
| Power | Gross PS: 25 hp 18.4 kW |
| Rated engine rpm | 3,000 rpm |
| Cylinders | Three |
| Displacement | 77 cu in. 1.26 L |
| Maximum torque | At 1,900 rpm: 47.2 lb-ft 64 Nm |
| Injection | Indirect |
| Fuel type | Diesel (optional kit permits B20 compatibility) |
| Cooling | Liquid |
| Cooling capacity | 7.5 U.S. qt 7.1 L |
| Air cleaner | Dual element dry type |
| Air restriction indicator | Standard |
| Charging system | Automotive type |
| Alternator, amp | 75 amp |
| Battery | 12 V |
| Speed and direction control | Two-pedal foot |
| Cruise control | Optional |
| Hi/Lo range | No, single speed transmission |
| Hi forward | 0-12 mph 0-19.3 km/h |
| Hi reverse | 0-5 mph 0-8 km/h |
| Type | Open center |
| Pump capacity | 5.1 U.S. gpm 19.3 L/min |
| Spool valve | Front lift, standard |
| Lift cylinders | Two |
| Turns lock-to-lock | 2 maximum, 1.5 minimum |
| Individual turn brakes | Standard |
| Master brake | Standard, locking |
| Steering | 2WD: 18x8.5-8 4WD: 18x8.5-10 |
| Wheelbase | 49.2 in. 125 cm |
| Ground clearance | 6.5 in. 16.5 cm |
| Length | Less mower deck: 86.7 in. 220.2 cm |
| Overall width | Narrow Width 23x10.5 tires: 51.8 in. 131.6 cm Wide Width 23x10.5 tires: 60.3 in. 153.2 cm |
| ROPS | Standard (folding) |
| ROPS certification | Two-post: OSHA 1928; Canadian Std.: CSA-352 Four-post: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009 |
| Overall height with ROPS | 82.7 in. 210 cm |
| Overall height with ROPS folded | 58 in. 147 cm |
| Shipping weight | Net weight, 2WD without mower or fuel: 1,675 lb 760 kg Net weight, 4WD without mower or fuel: 1,835 lb 832 kg |
| Construction | One-piece stamped: 7-Iron PRO |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

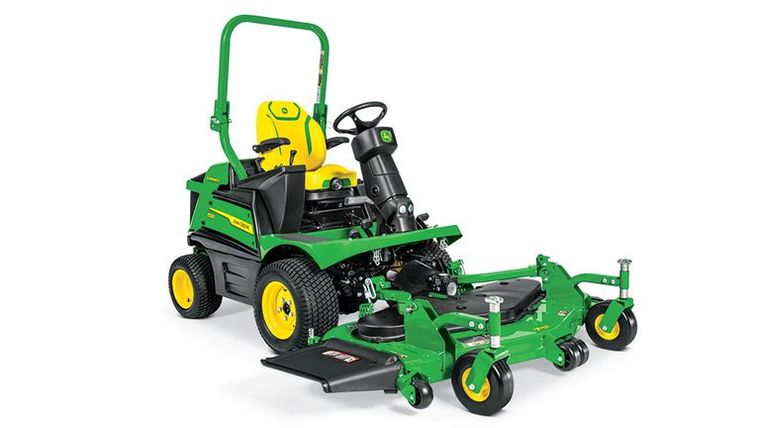

Tell us what you want to know about the John Deere 1550.
