| Models | Location and status GPS speed Geofencing and curfews Engine hours Maintenance planner Machine Analyzer Tool Fuel level Fuel consumption Diagnostic trouble codes Service Advisor Remote |
| Z700 ZTrak Mowers | X X X Key X X --- --- --- --- |
| Z900 ZTrak Mowers with carbureted engines | X X X Key X X --- --- --- --- |
| Z900 ZTrak Mowers with EFI engines | X X X Sync X X X X X X |
| Z994R ZTrak Mowers | X X X Key X X --- --- --- --- |
| Z997R ZTrak Mowers | X X X Sync X X --- X X X |
| E Series QuikTrak Mowers | X X X Key X X --- --- --- --- |
| Q820M, Q850M, and Q850R QuikTrak Mowers | X X X Sync X X X --- X --- |
| Q865R EFI QuikTrak Mowers | X X X Sync X X X X X X |
| R Series commercial walk-behind mowers | X X X Key X X --- --- --- --- |
| 1550 TerrainCut Front Mowers | X X X Key X X --- --- --- --- |
| 1570, 1575, 1580, and 1585 TerrainCut Front Mowers | X X X Key X X --- X X X |
| 1600 TerrainCut Wide-Area Mowers | X X X Key X X --- X X X |
| Model | Compatible model years Installation attachment |
| Gasoline-powered Z900 ZTrak Mowers | 2024 and newer (SN 130,001-) BUC11759 |
| QuikTrak Mowers | 2024 and newer (SN 010,001-) BUC11744 |
| TerrainCut Front Mowers | 2022-2023 (SN 080,001-110,000) BUC11797 |
| Engine Manufacturer/model | 4TNV86CT-DJWM (T4) |
| Engine Power | Gross power SAE J1995 at 3,000 rpm, PS 60 hp 44 kW |
| Fuel tank capacity | 22 U.S. gal./hr 83.3 L |
| Mower deck Size | 62, 94, 128 in. 157, 239, 325 cm |
| Blade tip speed | 13,000 fpm 3,962 m/min |
| Transmission | Hydrostatic |
| Speed range | 0-15 mph 0-24 km/h |
| Drive tires | 26x12-12 |
| Caster wheels | Four, 11x4-5, flat-free Two, 11x4-5, flat-free |
| Warranty | 24 months |
| Displacement | 127.6 cu in. 2.091 L 2,091 cc |
| Bore and stroke | 3.4x3.5 in. 86x90 mm |
| Injection | Direct |
| Starting aid | Engine glow plug |
| Cylinders | Four |
| Cycle | Four |
| Power | Gross power SAE J1995 at 3,000 rpm, PS 60 hp 44 kW |
| Rated engine speed | 3,000 rpm |
| Operating range | With isochronous governor 1,400-3,030 rpm |
| Lubrication | Pressurized by lobe-style pump |
| Oil filter | Spin-on |
| Cooling | Liquid-cooled water centrifugal |
| Cooling system capacity | 2.5 U.S. gal. 7.5 L |
| Crankcase capacity | 6.1 U.S. qt 5.8 L |
| Compression ratio | 19:01 |
| Operating torque (net continuous @ 3000 rpm) | 103 lb-ft 140 Nm |
| Max Torque per SAE J1349 (net continuous) | 117.3 lb-ft 159 Nm |
| Air cleaner | Dual element, dry type |
| Air restriction indicator | Standard, progressive type |
| Engine shutoff | Key |
| Radiator location | Rear mounted |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

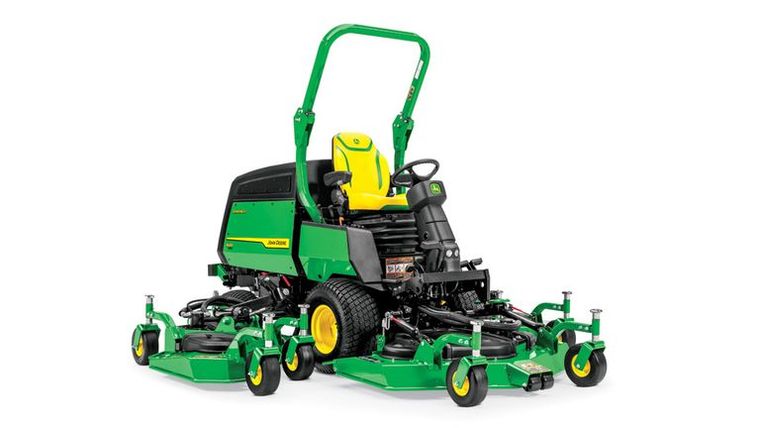

Tell us what you want to know about the John Deere 1600 Turbo TerrainCut™.
