New
Full Size Utvs

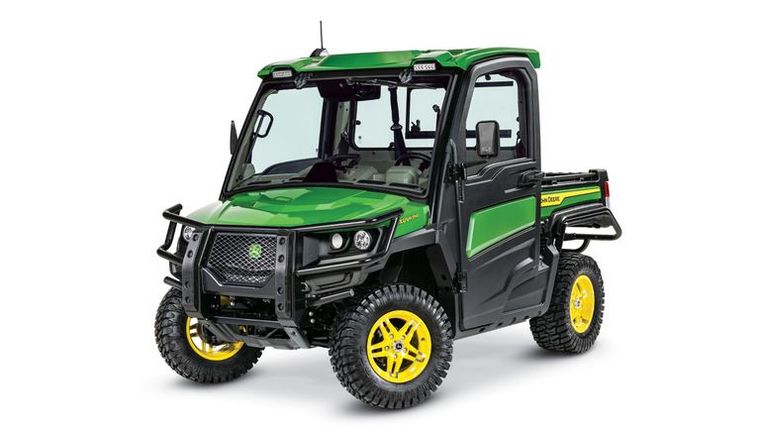

John Deere XUV835R Signature Edition
Request price
Available through TRULAND Equipment
- Category
- Full Size Utvs
- Type
- Full Size Utvs
- Condition
- New
| Engine power | 40.3 kW 54 hp |
| Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
| Cargo box capacity (weight) | 454 kg 1000 lb |
| Towing capacity | Up to 1814 kg 4000 lb |
| Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Final drive | Park, high, low, neutral, reverse transaxle |
| Four wheel drive | Dash switch actuated four-wheel drive system |
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
| Type | 4-cycle gas, electronic fuel injection (EFI) |
| Displacement | 812 cc |
| Power | 40.3 kW 54 hp |
| Cooling system | Liquid |
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
| Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock |
| Descent control | Yes |
| Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
| Wheelbase | 2146 mm 84.5 in. |
| Weight | With fuel and fluids: 1138 kg 2509 lb |
| Length | 3356 mm 132 in. |
| Width | 1763 mm 69.4 in. |
| Height | With antenna: 2215 mm 87.2 in. Antenna removed: 2038 mm 80.2 in. |
| Tread centers | Front: 1341 mm 52.8 in. Rear: 1259 mm 49.6 in. |
| Ground clearance | 284 mm 11.2 in. |
| Payload capacity | 407 kg 897 lb |
| Hitch | Standard receiver: 5.1 cm 2 in. |
| Color | Green and yellow |
| Power steering | Yes |
| Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V |
| Storage | Total: 47.3 L 12.5 gal. Six cup holders: 4.6 L 1.2 gal. Center tray: 1.2 L 0.3 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 36.4 L 9.6 gal. |
| Seating | Genuine leather 40/60 split three-passenger bench |
| Country of Manufacture | U.S. |
| Date collected | 8-Jun-22 |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere XUV835R Signature Edition.
