New
Full Size Utvs

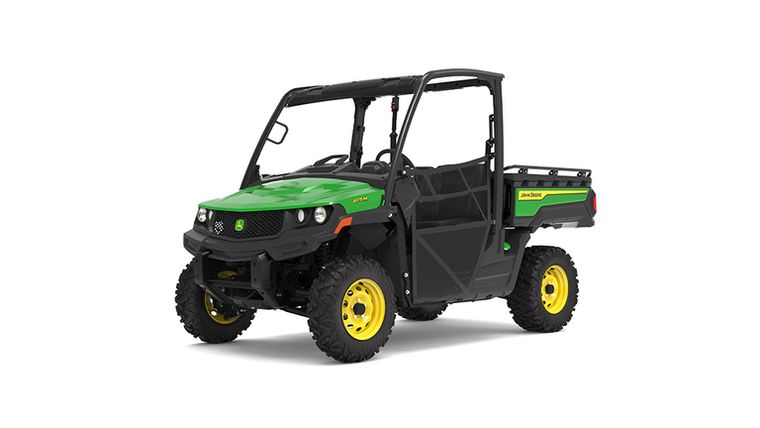

John Deere XUV 875M Diesel
Request price
Available through TRULAND Equipment
- Category
- Full Size Utvs
- Type
- Full Size Utvs
- Condition
- New
| Engine power | 17.0 kW 22.8 hp |
| Cargo box dimensions | 1099 x 343 x 1392 mm 43.3 x 13.5 x 54.8 in. |
| Cargo box volume | 524 L 18.5 cu ft |
| Cargo box capacity (weight) | 454 kg 1000 lb |
| Towing capacity | Up to 1814 kg 4000 lb |
| Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Final drive | Park, high, low, neutral, reverse transaxle |
| Four wheel drive | Dash switch actuated four-wheel drive system |
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
| Type | 4-cycle diesel |
| Displacement | 854 cc |
| Power | 17.0 kW 22.8 hp |
| Cooling system | Liquid |
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
| Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock |
| Descent control | Yes |
| Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
| Wheelbase | 2211 mm 87 in. |
| Weight | With fuel and fluids: 915 kg 2017 lb |
| Length | 3250 mm 128 in. |
| Width | 1625 mm 64.0 in. |
| Height | 1980 mm 78.0 in. With roof: 2030 mm 79.9 in. |
| Tread centers | Front: 1376 mm 54.2 in. Rear: 1300 mm 51.2 in. |
| Ground clearance | Unloaded: 305 mm 12 in. |
| Payload capacity | 627 kg 1383 lb |
| Hitch | Standard receiver: 5.1 cm 2 in. |
| Color | Green and yellow, TrueTimber® KANATI® camo, olive and black |
| Power steering | Yes |
| Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V Cargo box power port: 12 V |
| Seating | Black vinyl 40/60 split three-passenger bench |
| Country of Manufacture | U.S. |
| Date collected | 11-Jun-24 |
