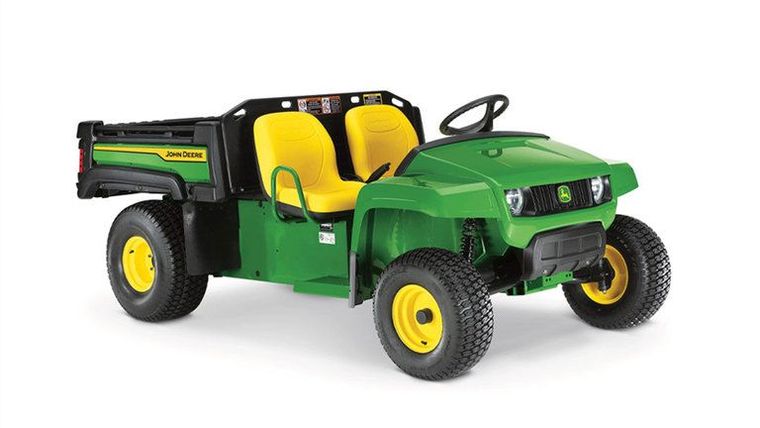

John Deere TE 4x2 Electric
Request price
Available through TRULAND Equipment
- Category
- Electric Utvs
- Type
- Electric Utvs
- Condition
- New
| Code | Description TX TX Turf TE TH |
| 5100 | Base comfort and convenience package -Deluxe cargo box with paint and reflectors -Manual cargo box lift Standard Standard Standard |
| 5105 | Select comfort and convenience package -Deluxe cargo box with spray-in liner and brake and taillights -Manual cargo box lift Upgrade option Upgrade option Upgrade option |
| Length | 1143 mm (45 in.) |
| Width | 1320 mm (52 in.) |
| Depth | 304 mm (11 in.) |
| Volume | 0.46 m 3 (16.4 cu ft) |
| Weight capacity TX and TX Turf | 272 kg (600 lb) |
| Weight capacity TE | 227 kg (500 lb) |
| Weight capacity TH gasoline | 454 kg (1000 lb) |
| Weight capacity TH diesel | 550 kg (1200 lb) |
| Dump angle | 43 degrees |
| Electrical system | 48 V 12 kWh Eight Trojan® T-105 batteries |
| Brake type | Dual rear wheel mechanical drum |
| Speed | 20.92 km/h 0-13 mph (Can be adjusted with handheld programmer) |
| Front suspension | Independent, spring over shock, single A-arm |
| Payload capacity | 408 kg 900 lb |
| Towing capacity | 272 kg 600 lb |
| Cargo capacity | 272 kg 600 lb |
| Cargo box volume | 460 L 16.4 cu ft |
| Charger type | High frequency switched-mode |
| Motor | Wound direct drive, 48 VDC separately excited |
| Controller | Separately excited, maximum 400 amp Anti-roll away braking and alarm, anti-stall motor protection, regenerative braking, diagnostic indicator, full torque, reduced speed reverse |
| Transaxle | 16.99:1 ratio with helical gearing |
| Gear selection | Forward, neutral, reverse |
| Battery | Trojan T-105 |
| Extended run time battery | Not available |
| Type | Dual rear wheel mechanical drum |
| Park brake | Hand operated, multi-latch |
| Front | Two 22x9.5-10, 4-ply high-flotation turf |
| Rear | Two 24x12-10, 4-ply high-flotation turf |
| Steering | Rack and pinion |
| Height | 1130 mm 44.5 in. |
| Ground Clearance | Under transaxle 196 mm 7.7 in. Under foot platform 185 mm 7.3 in. |
| Front tread centers | 1270 mm 50 in. |
| Rear tread centers | 1219 mm 48 in. |
| Wheelbase | 194 cm 76.4 in. |
| Vehicle weight | 630 kg 1389 lb |
| Turning clearance circle | 6.7 m 22 ft |
| Seating capacity | Two |
| Seat adjustment | Optional |
| Capacity | 272 kg 600 lb |
| Height above ground | 762 mm 30 in. |
| Material | Polypropylene side panels and tailgate; steel floor and load guard |
| Tailgate | Hinged at bottom, removable; side panels are removable |
| Dump | Manual, power lift (optional) |
| With 200 lb. operator only | Fully loaded: 0.6 bar 8.6 psi |
| Input voltage | 120 VAC 60 Hz |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere TE 4x2 Electric.
