New
Snow Attachments

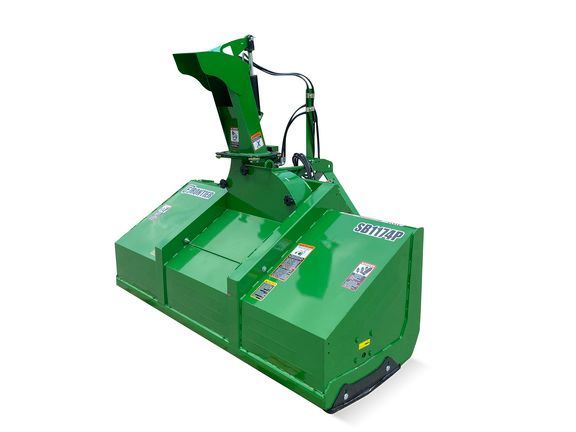

John Deere SB11P Series
Request price
Available through TRULAND Equipment
- Category
- Snow Attachments
- Type
- Snow Attachments
- Condition
- New
| Working width | SB1164P: 162 cm 63.75 in. SB1174P: 187 cm 73.75 in. |
| Operating weight, incl. chute | SB1164P: 276.7 kg 610 lb SB1174P: 285.7 kg 630 lb |
| PTO power minimum | SB1164P: 15 kW 20 hp SB1174P: 18.6 kW 25 hp |
| PTO power maximum | SB1164P: 37.3 kW 50 hp SB1174P: 41 kW 55 hp |
| Working height | All models : 64.8 cm 25.5 in. |
| Overall width | SB1164P: 165.1 cm 65 in. SB1174P: 190.5 cm 75 in. |
| Overall height (without chute) | All models : 92.7 cm 36.5 in. |
| Overall height (with chute closed) | All models : 153.7 cm 60.5 in. |
| Overall length | All models : 102.2 cm 40.25 in. |
| Shipping | SB1164P: 290.3 kg 640 lb SB1174P: 299.4 kg 660 lb |
| Chute position | All models : Right |
| Rotation type | All models : Manual or hydraulic |
| Rotation degrees | All models : 245 degree (angle) |
| Flow restrictor (rotation) | All models : Yes |
| Flow restrictor (deflector) | All models : No (available via parts) |
| Hoses support | All models : Yes |
| Deflector adjustement (2 part chute) | All models : Manual (hydraulic or electric in option) |
| Rotation | All models : No |
| Diameter | All models : 3.175 cm 1.25 in. |
| Speed | 170 rpm |
| Overload protection | Single |
| Auger - Single / dual | All models : Single |
| Main auger diameter | All models : 38.1 cm 15 in. |
| Auger driven system | All models : Chain No.60 |
| Shaft diameter | All models : 3.175 cm 1.25 in. |
| Second auger diameter | All models : N/A |
| Second auger driven system | All models : N/A |
| Blades | Four |
| Width | All models : 17.8 cm 7 in. |
| Impeller shaft diameter | All models : 3.5 cm 1.375 in. |
| Impeller RPM | All models : 540 rpm |
| Direction of impeller rotation | All models : CCW |
| Housing thickness | All models : 53 L 14 gal. |
| Side panel thickness | All models : 53 L 14 gal. |
| Impeller housing thickness | All models : 45.4 L 12 gal. |
| Parking stand | All models : Yes |
| Type of hitch | All models : 3 pts, cat. 1 |
| Compatibility with quick hitch | All models : Yes |
| Replacable & reversible cutting edge | All models : Fixed |
| Cutting edge material | All models : Carbon steel |
| Cutting edge dimension | All models : 0.9525 cm 0.375 in. x 5.08 cm 2 in. |
| Adjustable and replacable skid shoe | All models : Yes, 3 positions |
| Skid shoe material | All models : Carbon steel |
| Chain idler | All models : Yes |
| Number of auger shearbolt | All models : 1 (on the driving shaft) |
| Number of impeller shearbolt | All models : 1 (on the driveline) |
| Labor hours | All models : 1 hour |
| Machine | All models : 1 year |
