New
Mower Conditioners

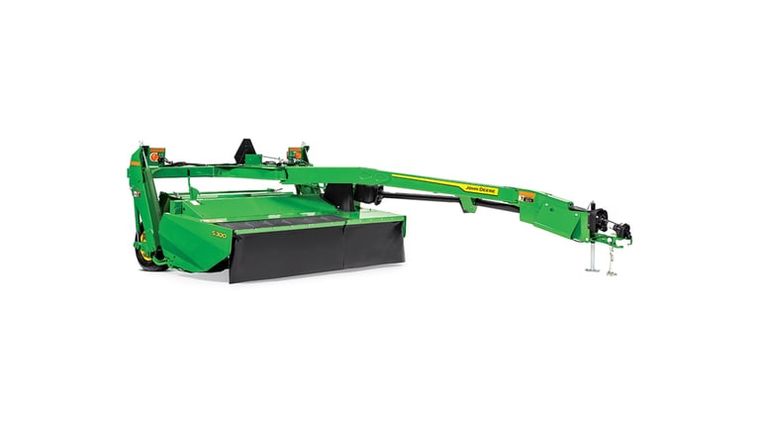

John Deere S300
Request price
Available through TRULAND Equipment
- Category
- Mower Conditioners
- Type
- Mower Conditioners
- Condition
- New
| PTO speed | 540 or 1000 rpm |
| 1000 rpm 1-3/8 in. PTO | 65-150 hp 48-112 kW |
| Standard hitch | Clevis |
| Optional hitch | Equal angle, Rockshaft swivel or Drawbar swivel |
| Hydraulic pressure required | 13,790 kPa 2,000 psi |
| Cutterbar - cutting width | 3 m 9.75 ft |
| Number of disks/knifes | 6 12 |
| Transport width | 3 m 9.75 ft |
| 540 rpm PTO | 65-81 hp 48-60 kW |
| Tractor connection | 21 spline |
| Type | John Deere |
| Cutting width | 3 m 9.75 ft |
| Cutting height | 2.8-9.8 cm 1.1-3.8 in. |
| Number of disks | 6 |
| Number of knives | 12 |
| Disk speed | 2,650 rpm |
| Knife tip speed | 307 km/h 191 mph |
| Disk drive | Gear |
| Lubrication | Hy-Gard oil |
| Oil reservoir capacity | 7 L 7.4 U.S. qt |
| Cutterbar oil check | Combination check, drain plug |
| Angle adjustment | Manual or hydraulic |
| Angle range | 2-8 degree (angle) |
| Cutterbar protection | ShearHub |
| Adjustable gauge shoes | Yes |
| Width | 185.4 cm 73 in. |
| Diameter | 59.4 cm 23.4 in. |
| Tines type | V-tines |
| Number of tines | 45 |
| Number of speeds | Two |
| Drive | 3-V powerband belt and sheaves |
| Type of material | Urethane or steel |
| Design | Urethane: Recessed cleat, Steel: Intermeshing flutes V-10 |
| Speed | 664 rpm |
| Transport length | With equal angle 6.2 m 20.6 ft |
| Weight, impeller conditioner | 2,130 kg 4,696 lb With Urethane roll conditioner: 2,272 kg 5,012 lb With Steel roll conditioner: 2,322 kg 5,120 lb With Impeller conditioner: 2,130 kg |
| Standard tires | 11L-15 standard, 31x13.5L optional 31x13.5L 15 optional |
| Date collected | August 24, 2020 |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere S300.
