| Engine power | 21.5 hp 16.0 kW |
| Oil change | No-tools oil drain with replaceable filter |
| Engine manufacturer/model | FR651V |
| Transaxle type | K46 heavy-duty hydrostatic, two-wheel drive |
| Transaxle control | Side-by-side pedals |
| Rear tires | 20x10-8 |
| Lift system type | Spring-assisted hand-grip lever |
| Cutting width | Accel Deep™ mower deck, 42 in. 107 cm Accel Deep™ mower deck, 48 in. 122 cm |
| Power | 21.5 hp 16.0 kW |
| Displacement | 44.3 cu in. 726 cc |
| Manufacturer/model | FR651V |
| Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Mechanical |
| Choke/speed control | Separate levers, automatic choke return |
| Cooling method | Air |
| Air cleaner | Dry, replaceable |
| Fuel delivery | Pulse pump and carburetor |
| Fuel gauge | Easy-read on dash |
| Fuel tank location | Rear |
| Fuel fill opening | Center, 1.75 in. 4.45 cm |
| Fuel tank capacity | 2.4 U.S. gal. 9.1 L |
| Battery | 12 V 300 CCA |
| Charging system | Flywheel alternator, regulated, 12 amp |
| Engine starter | Bendix type |
| Hour meter | Yes |
| Headlights | Two standard, LED |
| Taillights or reflector | Reflectors |
| Backup lights | No |
| Rear work lights | No |
| 12-V outlet | No |
| USB power port | USB Type-C power port |
| Control | Side-by-side pedals |
| Cruise control | Standard |
| Oil cooler | Fins and fan on transaxle |
| Oil filter | Internal, not replaceable |
| Differential lock | No |
| Forward speed | 0-5.5 mph 0-8.9 km/h |
| Reverse speed | 0-3.2 mph 0-5.2 km/h |
| Brakes | Internal wet disk |
| Frame | Full-length welded steel |
| Primer/paint | E-coat/powder |
| Weight bracket | Optional rear |
| Receiver hitch | No |
| Front axle | Cast iron front axle, front wheel sealed ball bearings |
| Spindle bushings | No |
| Front tires | 15x6-6 |
| Hood material | Molded-in color material reduces sound, will not rust or dent |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

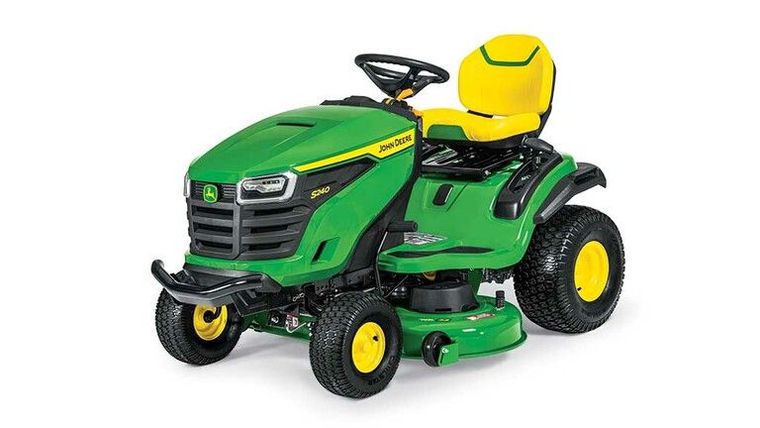

Tell us what you want to know about the John Deere S240.
