New
Air Seeding

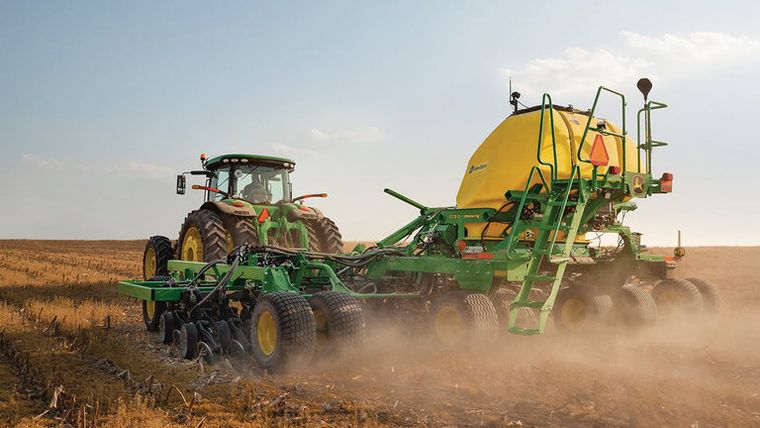

John Deere N540C
Request price
Available through TRULAND Equipment
- Category
- Air Seeding
- Type
- Air Seeding
- Condition
- New
| Option code | Width Mainframe front tire size Number of tires Mainframe rear tire size Number of tires Wing frame tire size Number of tires |
| 3610 | All 33x15.5R16.5 4 33x15.5R16.5 4 31x13.5R15 4 |
| 3611 | All 33x15.5R16.5 4 33x15.5R16.5 4 31x13.5R15 8 |
| 3612 | 9.5/11-m (30/36-ft) 33x15.5R16.5 4 500/40R16.5 4 33x15.5R16.5 8 |
| 3613 | 12.2/12.8-m (40/42-ft) 500/40R16.5 4 500/40R16.5 4 33x15.5R16.5 8 |
| Working widths | 12.2 m 40 ft |
| Spacing | Dual rank: 7.5-in. (19.1 cm) spacing; 10-in. (25.4 cm) spacing Single rank: 15-in. (38.1 cm) spacing |
| Number of ranks | Single; Dual |
| Road clearance | > 17.8 cm > 7.0 in. |
| Overall length | ≤ 9.1 m ≤ 29.9 ft |
| Centerframe width | 4.6 m 15.2 ft |
| Weight before ballast | Dual rank - 7.5-in. (19.1 cm) spacing: ≤ 29,800 lb. (13,500 kg) Dual rank - 10-in. (25.4 cm) spacing: ≤ 26,400 lb. (12,000 kg) Single rank - 15-in. (38.1 cm) spacing: ≤ 18,500 lb. (8400 kg) |
| Frame | Cross members 102x152 mm 4x6 in. End tubes 51x152 mm 2x6 in. Hitch 254x152 mm 10x6 in. |
| Lateral frame clearance, opener to opener | 15 in. (38.1 mm) for 7.5-in (19.1 cm) models |
| Clearance from rank to rank | 134 cm 52.8 in. |
| From ground to top of lid | ≤ 310 cm (122 in.) |
| From ground to platform | ≤ 220 cm 85 in. |
| From ground to top of safety rail | ≤ 322.6 cm 127 in. |
| From ground to top of lights | ≤ 310 cm (122 in.) |
| Mainframe standard | (4) 33x15.5-16 on front, (4) 33x15.5-16 on rear |
| Wings standard | (4) 31x13.5-15 NHS |
| Centerframe tires and wheels | (4) 500/40R16 on front, (4) 500/40R16 on rear |
| Wing tires and wheels | (8) 33x15.5-16 |
| Style | No-till |
| Rank lock-up | Individual |
| Disk | Diameter 45.7 cm 18 in. Angle 7-degree angle 45.7 cm (18-in.) disk blade at 7-degree angle |
| Down pressure | Style Hydraulic rank 74.8-181.4 kg/opener (165-400 lb) |
| Depth control | Description Gauge wheel (smooth sided or spoked) Gauge wheel size 4.5x16 in. 11.4x40.6 cm Range 0.5-3.5 in. (1.3-8.9 cm) Increments 0.25 in. (0.64 cm) |
| In-Furrow press wheel | Material Rubber Packing force Adjustable down-pressure from 2.3 to 20.4 kg 5 to 45 lb 2.54x25.4 cm 1x10 in. |
| Description | Central volumetric metering |
| Crops | Barley, oats, rice, sorghum, soybean, wheat |
| Max Volumetric Seeding Rates - Barley | ≤ 1,000,000 seeds per acre (2,470,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Oats | ≤ 2,500,000 seeds per acre (6,180,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Rice | ≤ 1,700,000 seeds per acre (4,200,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Milo/Sorghum | ≤ 100,000 seeds per acre (247,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Soybean | ≤ 250,000 seeds per acre (618,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Wheat | ≤ 2,970,000 seeds per acre (7,300,000 seeds per hectare) |
| Metering Drive Type | Electric |
| Tank Description | Central, non-pressurized polyethylene tank |
| Total Tank Capacity | 4200 L (120 bu) |
| Tank Fill Screen | Optional; one per tank opening |
| Tank Scales | Optional; provides summed commodity weight |
| Type | Pneumatic |
| Blower | 45 cm (17.7 in.) diameter impeller |
| Blower drive type | Hydraulic |
| Distribution hose size | 1 in. (2.54 cm) ID for 38.1 cm (15 in.) row spacing 1.13 in. (3.13 cm) ID primaries with 1 in. (2.54 cm) ID secondaries for 19.1 and 25.4 cm (7.5 and 10 in.) row spacings |
| Tractor drawbar power required, 7.5-in (19.1 cm) models | ≥ 278 kW (373 hp) |
| Tractor drawbar power required, 10-in (25.4 cm) models | ≥ 225 kW (301 hp) |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere N540C.
