New
Air Seeding

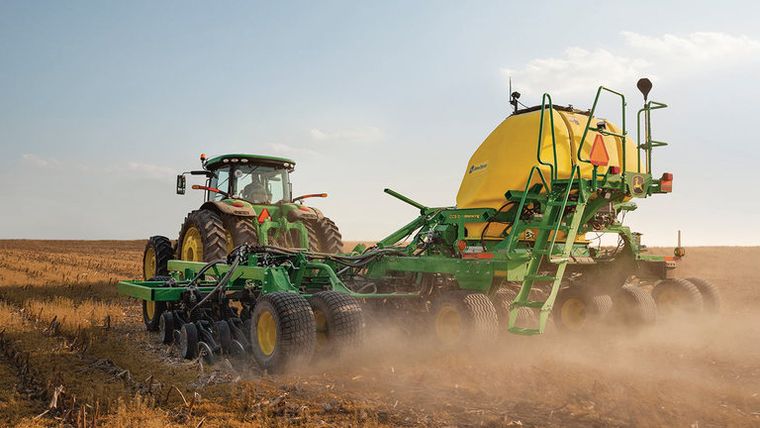

John Deere N536C
Request price
Available through TRULAND Equipment
- Category
- Air Seeding
- Type
- Air Seeding
- Condition
- New
| Option code | Width Mainframe front tire size Number of tires Mainframe rear tire size Number of tires Wing frame tire size Number of tires |
| 3610 | All 33x15.5R16.5 4 33x15.5R16.5 4 31x13.5R15 4 |
| 3611 | All 33x15.5R16.5 4 33x15.5R16.5 4 31x13.5R15 8 |
| 3612 | 9.5/11-m (30/36-ft) 33x15.5R16.5 4 500/40R16.5 4 33x15.5R16.5 8 |
| 3613 | 12.2/12.8-m (40/42-ft) 500/40R16.5 4 500/40R16.5 4 33x15.5R16.5 8 |
| Working widths | 11 m 36 ft |
| Spacing | Dual rank: 7.5-in. (19.1 cm) spacing; 10-in. (25.4 cm) spacing Single rank: 15-in. (38.1 cm) spacing |
| Number of ranks | Single; Dual |
| Road clearance | > 17.8 cm > 7.0 in. |
| Overall length | ≤ 9.1 m ≤ 29.9 ft |
| Centerframe width | 3.5 m 11.4 ft |
| Weight before ballast | Dual rank - 7.5-in. (19.1 cm) spacing: ≤ 27,200 lb. (12,300 kg) Dual rank - 10-in. (25.4 cm) spacing: ≤ 24,300 lb. (11,000 kg) Single rank - 15-in. (38.1 cm) spacing: ≤ 16,900 lb. (7700 kg) |
| Frame | Cross members 102x152 mm 4x6 in. End tubes 51x152 mm 2x6 in. Hitch 254x152 mm 10x6 in. |
| Lateral frame clearance, opener to opener | 15 in. (38.1 mm) for 7.5-in (19.1 cm) models |
| Clearance from rank to rank | 134 cm 52.8 in. |
| From ground to top of lid | ≤ 320 cm (126 in.) |
| From ground to platform | ≤ 220 cm 85 in. |
| From ground to top of safety rail | ≤ 322.6 cm 127 in. |
| From ground to top of lights | ≤ 320 cm (126 in.) |
| Mainframe standard | (4) 33x15.5-16 on front, (4) 33x15.5-16 on rear |
| Wings standard | (4) 31x13.5-15 NHS |
| Centerframe tires and wheels | (4) 33x15.5-16 on front, (4) 500/40R16 on rear |
| Wing tires and wheels | (8) 33x15.5-16 |
| Style | No-till |
| Rank lock-up | Individual |
| Disk | Diameter 45.7 cm 18 in. Angle 7-degree angle 45.7 cm (18-in.) disk blade at 7-degree angle |
| Down pressure | Style Hydraulic rank 74.8-181.4 kg/opener (165-400 lb) |
| Depth control | Description Gauge wheel (smooth sided or spoked) Gauge wheel size 4.5x16 in. 11.4x40.6 cm Range 0.5-3.5 in. (1.3-8.9 cm) Increments 0.25 in. (0.64 cm) |
| In-Furrow press wheel | Material Rubber Packing force Adjustable down-pressure from 2.3 to 20.4 kg 5 to 45 lb 2.54x25.4 cm 1x10 in. |
| Description | Central volumetric metering |
| Crops | Barley, oats, rice, sorghum, soybean, wheat |
| Max Volumetric Seeding Rates - Barley | ≤ 1,000,000 seeds per acre (2,470,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Oats | ≤ 2,500,000 seeds per acre (6,180,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Rice | ≤ 1,700,000 seeds per acre (4,200,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Milo/Sorghum | ≤ 100,000 seeds per acre (247,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Soybean | ≤ 250,000 seeds per acre (618,000 seeds per hectare) |
| Max Volumetric Seeding Rates - Wheat | ≤ 2,970,000 seeds per acre (7,300,000 seeds per hectare) |
| Metering Drive Type | Electric |
| Tank Description | Central, non-pressurized polyethylene tank |
| Total Tank Capacity | 3500 L (100 bu) |
| Tank Fill Screen | Optional; one per tank opening |
| Tank Scales | Optional; provides summed commodity weight |
| Type | Pneumatic |
| Blower | 45 cm (17.7 in.) diameter impeller |
| Blower drive type | Hydraulic |
| Distribution hose size | 1 in. (2.54 cm) ID for 38.1 cm (15 in.) row spacing 1.13 in. (3.13 cm) ID primaries with 1 in. (2.54 cm) ID secondaries for 19.1 and 25.4 cm (7.5 and 10 in.) row spacings |
| Tractor drawbar power required, 7.5-in (19.1 cm) models | ≥ 254 kW (341 hp) |
| Tractor drawbar power required, 10-in (25.4 cm) models | ≥ 207 kW (278 hp) |
