New
Air Seeding

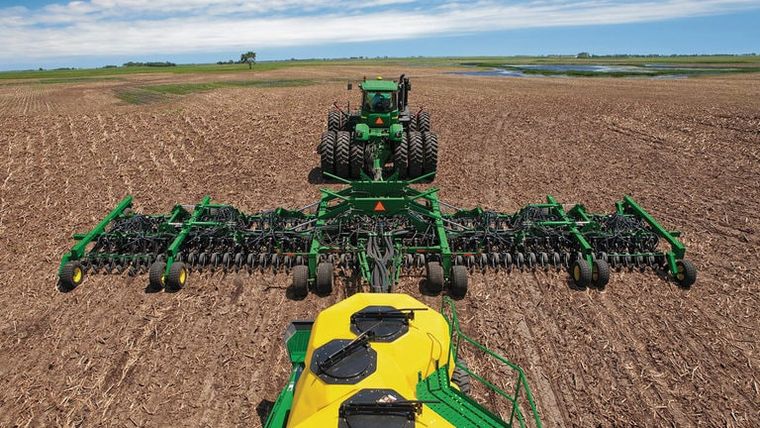

John Deere N530
Request price
Available through TRULAND Equipment
- Category
- Air Seeding
- Type
- Air Seeding
- Condition
- New
| Working widths | 9.14 m 30 ft |
| Spacing | 19.05, 25.4 cm 7.5, 10 in. |
| Number of ranks | Two |
| Openers | Style Single disk-beveled edge Rank lock-up Yes Diameter 45.72 cm 18 in. Down pressure Hydraulic |
| Number of sections | Three |
| Transport height | 3.63 m 11.92 ft |
| Transport width | 4.37 m 14.33 ft |
| Road clearance | 21.6 cm 8.5 in. |
| Overall length | 7.49 m 24.58 ft, in. |
| Weight before ballast | 7711, 6759 kg 17000, 14900 lb |
| Available ballast | 1179 (12+14 x 45) kg 2600 (12+14 x 100) lb |
| Frame | Cross members 102 x 152 mm 4 x 6 in. End tubes 51 x 152 mm 2 x 6 in. Hitch 76 x 152 mm 3 x 6 in. |
| Clearance from rank to rank | 133.99 cm 52.75 in. |
| Mainframe standard | (8) 11L-15, 10PR |
| Wings standard | (4) 11L-15, 8PR |
| Style | Single disk-beveled edge |
| Rank lock-up | Yes |
| Disk | Diameter 45.72 cm 18 in. Angle 7 degree (angle) |
| Down pressure | Style Active hydraulic-patented Hydraulic |
| Depth control | Description Gauge wheel beside disk Gauge wheel size 11.43 x 40.64 or 7.62 x 40.64 cm 4.5 x 16 or 3 x 16 in. Range 1.27 to 8.89 cm 0.5 to 3.5 in. Increments 0.64 cm 0.25 in. |
| In-Furrow press wheel | Material Rubber on plastic wheel Packing force 5 to 45 lb 2.3 to 21 kg Standard |
| Furrow closing | Description Trailing wheel on 20-degree vertical angle, 7-degree horizontal angle Size 2.54 x 30.5 cm 1 x 12 in. Material Cast iron Down force 26 to 43 lb 12 to 20 kg Standard |
