New
Balers

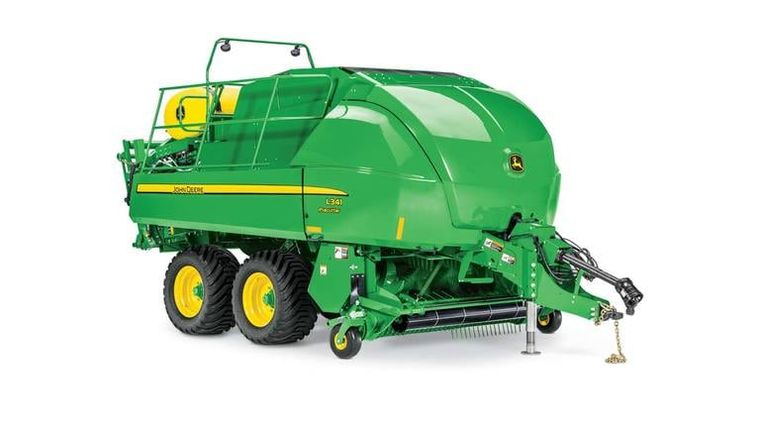

John Deere L341R
Request price
Available through TRULAND Equipment
- Category
- Balers
- Type
- Balers
- Condition
- New
| Connection point reduction | 8 12 |
| Lube line reduction (m, ft) | 16.8 m (55 ft) 25.3 m (83 ft) |
| Part | Quantity |
| Pickup teeth | 20 |
| Pickup strippers | 4 |
| Pickup stripper bolts | 4 |
| Left-hand cam arm | 1 |
| Right-hand cam arm | 1 |
| Cam arm bearing | 4 |
| Cam arm bolt | 2 |
| Bill hooks | 6 |
| Wiper plates | 6 |
| Twine knives | 6 |
| Twine discs | 3 |
| Twine retainer | 3 |
| Twine cleaner | 3 |
| Needle roller kit | 6 |
| Proximity sensor | 2 |
| Bottom knives bolts | 6 |
| Bottom knives center | 2 |
| Bottom knives end | 1 |
| Bale | 90x120 cm 3x4 ft |
| Width | 120 cm 46.5 in. |
| Height | 90 35 |
| Length | 60 up to 300 cm 24 up to 118 in. |
| Number of knotters | Six |
| Knives | 21, 11, or 10 |
| Machine - Width | 3 m 9.8 ft |
| Machine - Height | 2.75 m 9 ft |
| Machine - Weight | 9,210 kg 20,370 lb |
| Minimum tractor requirement | 108 kW 145 PTO hp - no Pre-Cutter 119 kW 160 PTO hp - with Pre-Cutter |
| Intake width | Standard: 220 cm 86 in. Optional: 250 cm 97 in. |
| Pickup diameter | 25.6 cm 10 in. |
| Number of tine bars 4-5 | Four |
| Tine spacing | 6.6 cm 2.6 in. |
| Number of plunger strokes | 45 spm |
| Plunger stroke | 69.5 cm 27 in. |
| Density control | Four hydraulic cylinders |
| Bale chamber length | 305 cm 120 in. |
| Control | ISOBUS - GreenStar™ 2 1800 or GreenStar 3 2630 |
| Twine capacity (rolls) | 30 |
| High-capacity rotor | Yes |
| Cutting length | 44 mm 1.7 in. or 88 mm 3.5 in. |
| Knife protection | Individual spring |
| Slide out floor | Yes |
| Single axle | 600/50/22.5 or 710/40R/22.5 |
| Tandem axle steered (optional) | 500/55/20 or 550/45/22.5 |
| Brakes system | Optional hydraulic |
