New
Nutrient Applicators

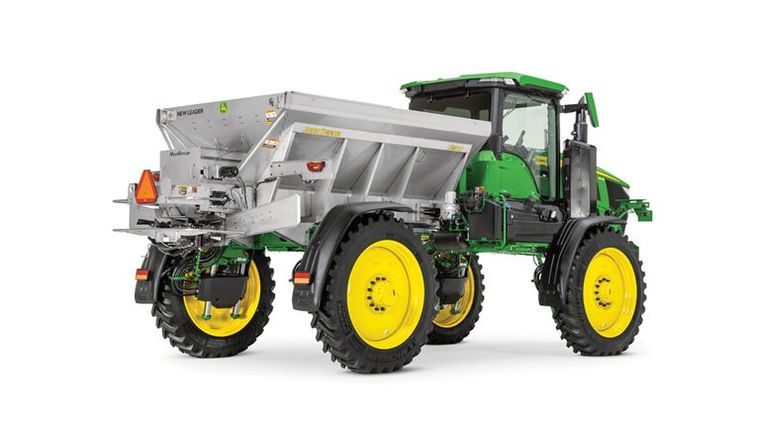

John Deere DS20
Request price
Available through TRULAND Equipment
- Category
- Nutrient Applicators
- Type
- Nutrient Applicators
- Condition
- New
| Compatible series | 408R, 410R, 412R, 612R, and 616R Self-Propelled Sprayers and 400R and 600R Dry Spinner Spreaders NOTE: Must use DS20 with 28-cm (11-in.) gate height for lime applications on 612R/616R/600R only. |
| Product spread | Dry fertilizer or lime |
| Second product bin | Optional |
| Spreader material | 304 or painted 409 stainless steel |
| Capacity without second product bin | 5.6 m 3 200 cu ft |
| Capacity with second product bin | 3 m 3 106 cu ft |
| Spread pattern width with single-product bin | 18.3 to 32 m 60 to 105 ft |
| Feedgate height | 12.7 or 28 cm 5 or 11 in. |
| Conveyor system | #4 belt over chain |
| Rate control make | SpreadStar™ rate controller |
| Capacity of second product bin | 1.9 m 3 66 cu ft |
| Spread pattern width with second-product bin | 18.3 to 25.6 m 60 to 84 ft |
| Estimated spreader weight | 1467 kg 3240 lb |
| Second product bin weight | 431 kg 950 lb |
| Body length | With spinner frame 437.5 cm 172 in. 335.3 cm 132 in. |
| Body length of second bin insert | 152.4 cm 60 in. |
| Body width | With spinner frame 321.6 cm 127 in. 243.8 cm 96 in. |
| Body height | 144.4 cm 56.85 in. |
| Disk diameter | 61 cm 24 in. |
| Fins per disk | Four |
| Date collected | 1 March 2021 |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere DS20.
