New
Db Planters

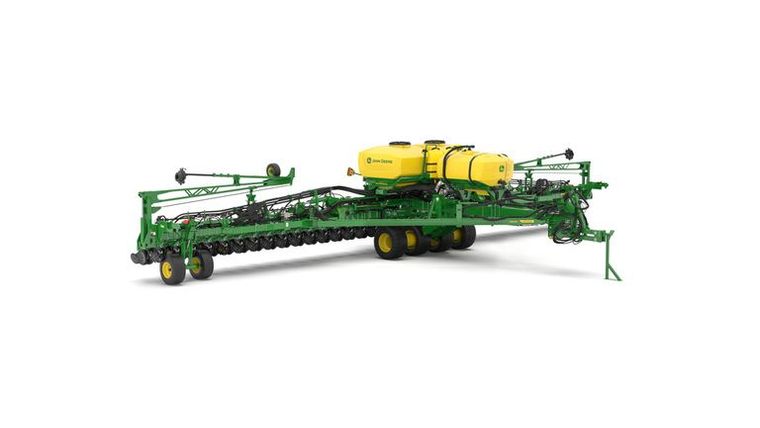

John Deere DB60 36Row20
Request price
Available through TRULAND Equipment
- Category
- Db Planters
- Type
- Db Planters
- Condition
- New
| Model | Model year |
| 1775NT 2 Point | Model year 2018-current |
| 1775NT Drawbar | Model year 2018-current |
| DB60 36R | Model year 2018-Model year 2024 |
| DB90 36R | Model year 2018-Model year 2024 |
| All other DB's (except above) 36+ Rows | Model year 2018-current |
| All other DB's (except above) | Model year 2018-current |
| 1725C Mounted | Model year 2025-current |
| 1795 2 POINT HITCH | Model year 2018-current |
| 1795 DRAWBAR | Model year 2018-current |
| Number of rows | 36 |
| Row spacing | 50.8 cm 20 in. |
| Frame - Fold configuration | 3-section front-fold |
| Frame - Flexibility | Up: 15 degree (angle) Down: 15 degree (angle) |
| Row unit seed hoppers | Capacity Vacuum meter: 2.2 L 0.062 bu |
| Seed Meters | Base Vacuum |
| Fold configuration | 3-section front-fold |
| Flexibility | Up: 15 degree (angle) Down: 15 degree (angle) |
| Type | Wheel modules with rephasing hydraulic cylinders |
| Opener | Tru-Vee double disk |
| Row unit down force | Active Pneumatic Downforce or Individual Row Hydraulic Downforce |
| Base | Vacuum |
| Central Commodity System | Seed capacity 4581 L 130 bu |
| Tank capacity | 2271 L 600 gal. |
| ExactRate Fluid Transfer System | Available |
| Transport width (with markers) | 4.9 m 16 ft |
| Transport length | 12.5 m 41 ft |
| Transport height | 3 m 10 ft |
| Transport weight | Average empty weight: 15,785 kg 34,800 lb |
| Transport underframe clearance | 55.9 cm 22 in. |
| Recommended tractor horsepower | Requires tractor equipped with Category 4 drawbar and minimum 205 kW 275 hp |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere DB60 36Row20.
