New
Db Planters

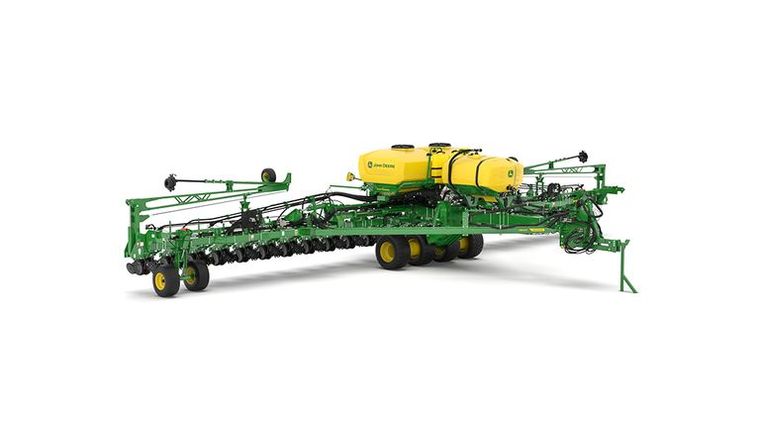

John Deere DB60 24Row30
Request price
Available through TRULAND Equipment
- Category
- Db Planters
- Type
- Db Planters
- Condition
- New
| Model | Model year |
| 1775NT 2 Point | Model year 2018-current |
| 1775NT Drawbar | Model year 2018-current |
| DB60 36R | Model year 2018-Model year 2024 |
| DB90 36R | Model year 2018-Model year 2024 |
| All other DB's (except above) 36+ Rows | Model year 2018-current |
| All other DB's (except above) | Model year 2018-current |
| 1725C Mounted | Model year 2025-current |
| 1795 2 POINT HITCH | Model year 2018-current |
| 1795 DRAWBAR | Model year 2018-current |
| Number of rows | 24 |
| Row spacing | 76.2 cm 30 in. |
| Frame - Fold configuration | 3-section front-fold |
| Frame - Flexibility | Up: 15 degree (angle) Down: 15 degree (angle) |
| Row unit seed hoppers | Capacity Vacuum meter: 2.2 L 0.062 bu |
| Seed Meters | Base Vacuum |
| Fold configuration | 3-section front-fold |
| Flexibility | Up: 15 degree (angle) Down: 15 degree (angle) |
| Type | Wheel modules with rephasing hydraulic cylinders |
| Base | 445/50R22.5 center frame tires: 517 kPa 5.2 bar 75 psi 31-13.5x15 six-ply wing frame implement tires: 152 kPa 1.5 bar 22 psi 31-13.5x16.5 eight-ply wing frame skid steer tires: 241 kPa 2.4 bar 35 psi |
| Opener | Tru-Vee double disk |
| Row unit down force | Active Pneumatic Downforce or Individual Row Hydraulic Downforce |
| Central Commodity System | Seed capacity 4581 L 130 bu |
| Tank capacity | 2271 L 600 gal. |
| ExactRate Fluid Transfer System | Available |
| Transport width (with markers) | 5.4 m 17.5 ft |
| Transport length | 12.5 m 41 ft |
| Transport height | 3 m 10 ft |
| Transport weight | Average empty weight: 13,989 kg 30,840 lb |
| Transport underframe clearance | 55.9 cm 22 in. |
| Recommended tractor horsepower | Minimum required on tractor with Category 4 drawbar: 175.2 kW 235 hp Equipped with Categroy 4 drawbar |
