New
Db Planters

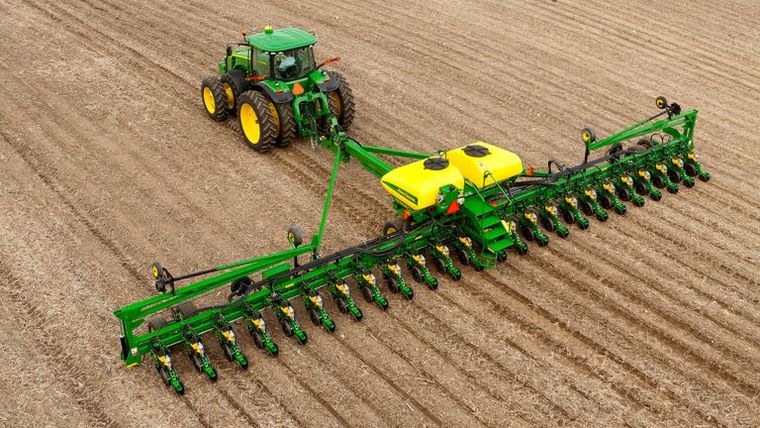

John Deere DB60 24Row30/47Row15
Request price
Available through TRULAND Equipment
- Category
- Db Planters
- Type
- Db Planters
- Condition
- New
| Number of rows | 47 |
| Row spacing | 38.1 cm 15 in. |
| Frame - Fold configuration | 3-section front-fold |
| Frame - Flexibility | Up: 15 degree (angle) Down: 15 degree (angle) |
| Row unit seed hoppers | Capacity Mini hopper: 2.24 L 0.063 bu Mini hoppers |
| Seed Meters | Base Vacuum |
| Fold configuration | 3-section front-fold |
| Frame tube size | 17.8x17.8 cm 7x7 in. |
| Fold-and-go from tractor cab | Base |
| Flexibility | Up: 15 degree (angle) Down: 15 degree (angle) |
| Base | Drawbar |
| Type | Electrohydraulic series rephasing cylinders with center sec. drop axle |
| Number of cylinders | Five |
| Quantity | Eight |
| Depth gauging | (2) semi-pneumatic wheels: 11.4x40.6 cm 4.5x16 in. |
| Adjustment | T-handle depth: 0.635-10.2 cm 0.25-4 in. with increments of 0.635 cm 0.25 in. |
| Walking wheels | Optional |
| Row unit down force | Pneumatic Base, Infinitely adjustable to 181.4 kg 400 lb Base equipment |
| Scrapers, opener blades | Plastic rotary Optional Steel straight blade Optional Heavy-duty Optional Optional |
| Seed tube sensors | Base equipment |
| Central Commodity System | Seed capacity 4581 L 130 bu Base equipment |
| Counter shaft | Hex: 2.22 cm 0.875 in. |
| Drill shaft | Hex: 2.22 cm 0.875 in. |
| Transmission combinations | Infinite |
| Control | Base: Independent |
| Marker disk | Base: Notched with depth gauging band: 40.6 cm 16 in. |
| Less marker option | Optional |
| Rubber tire closing system | Wheel (2) rubber tires with nylon wheels: 2.54x30.5 cm 1x12 in. Position In-line or staggered Adjustment T-handle Down force 5-position Alignment Adjustable Base equipment |
| Cast iron closing system | Wheel (2) cast iron wheels: 2.54x30.5 cm 1x12 in. Position In-line or staggered Adjustment T-handle Optional |
| Tank capacity | 1,590 L 420 gal. |
| Unit-mounted coulter | Unit-mounted coulter: Optional |
| Transport width (with markers) | 5.4 m 17.5 ft |
| Transport length | 12.5 m 41 ft |
| Transport height | 3 m 10 ft |
| Transport weight | 13,517 kg 29,800 lb |
| Transport underframe clearance | 55.9 cm 22 in. |
| Field documentation | Map-based seeding Field documentation Parallel tracking |
| Warranty length | 1 year |
