New
Db Planters

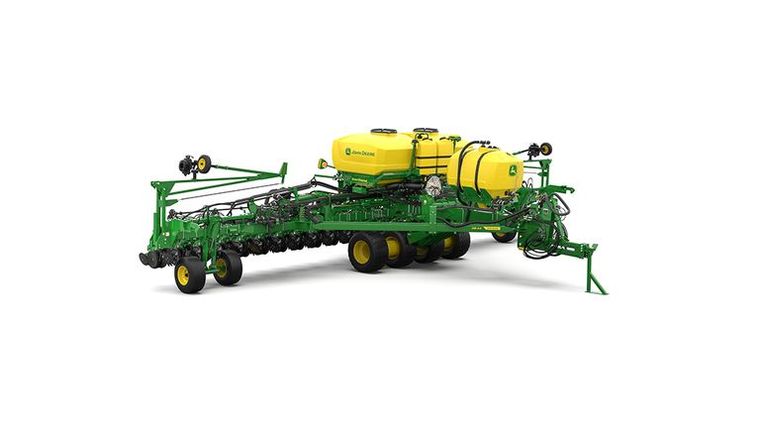

John Deere DB44 24Row22
Request price
Available through TRULAND Equipment
- Category
- Db Planters
- Type
- Db Planters
- Condition
- New
| Model | Model year |
| 1775NT 2 Point | Model year 2018-current |
| 1775NT Drawbar | Model year 2018-current |
| DB60 36R | Model year 2018-Model year 2024 |
| DB90 36R | Model year 2018-Model year 2024 |
| All other DB's (except above) 36+ Rows | Model year 2018-current |
| All other DB's (except above) | Model year 2018-current |
| 1725C Mounted | Model year 2025-current |
| 1795 2 POINT HITCH | Model year 2018-current |
| 1795 DRAWBAR | Model year 2018-current |
| Number of rows | 24 |
| Row spacing | 55.9 cm 22 in. |
| Frame - Fold configuration | 3-section front-fold |
| Frame - Flexibility | Up: 15 degree (angle) Down: 15 degree (angle) |
| Row unit seed hoppers | Capacity Vacuum meter: 2.2 L 0.062 bu |
| Seed Meters | Base Vacuum |
| Fold configuration | 3-section front-fold |
| Flexibility | Up: 15 degree (angle) Down: 15 degree (angle) |
| Type | Wheel modules with rephasing hydraulic cylinders |
| Opener | Tru-Vee double disk |
| Row unit down force | Active Pneumatic Downforce or Individual Row Hydraulic Downforce |
| Base | Vacuum |
| Central Commodity System | Seed capacity 4581 L 130 bu |
| Tank capacity | 1590 L 420 gal. |
| ExactRate Fluid Transfer System | Available |
| Transport width (with markers) | 4.3 m 14 ft |
| Transport length | 11.3 m 37 ft |
| Transport height | 3 m 10 ft |
| Transport weight | Average frame empty weight: 9,344 kg 20,600 lb |
| Transport underframe clearance | 55.9 cm 22 in. |
| Recommended tractor horsepower | Minimum tractor required: 175.2 kW 235 hp Equipped with Category 4 drawbar |
| Recommended tractor hydraulics | Tractor standby pressure: 15,500 kpa 155 bar (2300 psi) Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi) Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi) |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere DB44 24Row22.
