New
Db Planters

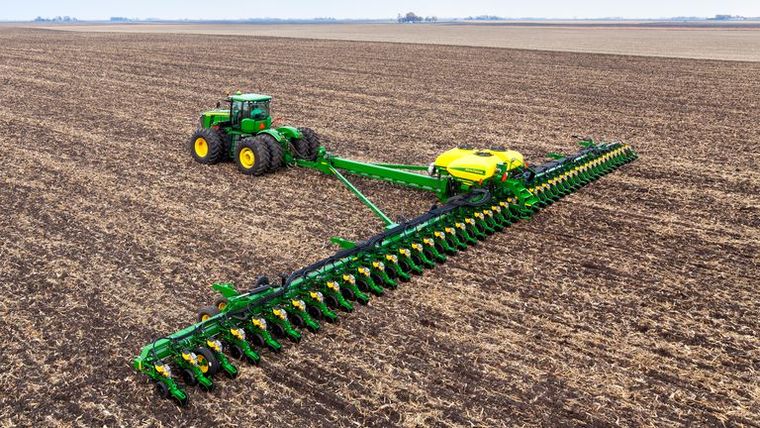

John Deere DB120 48Row30
Request price
Available through TRULAND Equipment
- Category
- Db Planters
- Type
- Db Planters
- Condition
- New
| Number of rows | 48 |
| Row spacing | 76.2 cm 30 in. |
| Frame - Fold configuration | Front fold |
| Frame - Flexibility | 5-section flex-frame; wing 15 degrees up and down |
| Row unit seed hoppers | Capacity Mini hoppers: 2.22 L 0.063 bu |
| Seed Meters | Base Vacuum |
| Fold configuration | Front fold |
| Frame tube size | 17.8x17.8 cm 7x7 in. |
| Fold-and-go from tractor cab | Base |
| Flexibility | 5-section flex-frame; wing 15 degrees up and down |
| Base | Drawbar |
| Rear hitch | Optional |
| Type | Electrohydraulic series rephasing cylinder with center sec. drop axle |
| Number of cylinders | 6 |
| Quantity | 12 |
| Depth gauging | (2) semi-pneumatic wheels: 11.4x40.6 cm 4.5x16 in. |
| Adjustment | T-handle 0.635-10.2 in. 0.25-4 in. in increments of 0.635 cm 0.25 in. |
| Walking wheels | Optional |
| Row unit down force | Pneumatic Base, Infinitely adjustable to 181.4 kg 400 lb Base equipment |
| Scrapers, opener blades | Steel straight blade Base Heavy-duty Optional Optional |
| Seed tube sensors | Base equipment |
| Central Commodity System | Seed capacity 4,405 L 125 bu Base |
| Counter shaft | Hex: 2.22 cm 0.875 in. |
| Drill shaft | Hex: 2.22 cm 0.875 in. |
| Seed transmission | Frame-mounted |
| Transmission combinations | Electrohydraulic, on-demand adjustment |
| Rubber tire closing system | Wheel (2) rubber tires with nylon wheel: 2.54x30.5 cm 1x12 in. Position In-line or staggered Adjustment T-handle Down force 5-position Alignment Adjustable Base equipment |
| Tank capacity | 1,590 L 420 gal. |
| Unit-mounted coulter | Unit-mounted: Optional |
| Transport width (with markers) | 4.6 m 15 ft |
| Transport length | 19 m 62 ft |
| Transport height | 3.7 m 12 ft |
| Transport weight | 18,273 kg 40,200 lb |
| Transport underframe clearance | 66 cm 26 in. |
| Field documentation | Map-based seeding Field documentation Parallel tracking |
| Warranty length | 1 year |
