New
Loaders

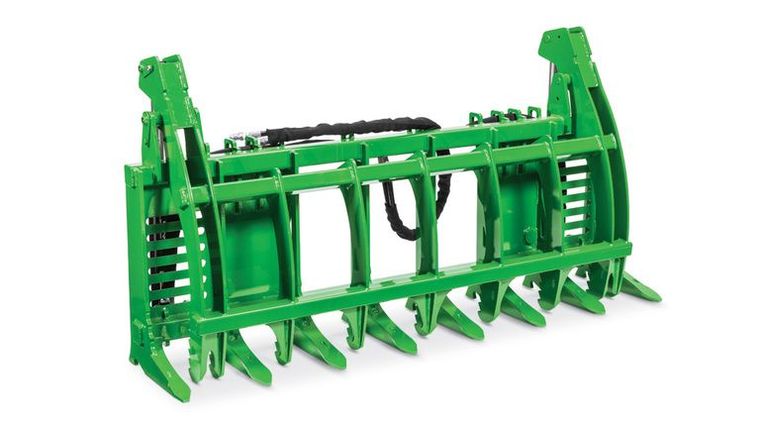

John Deere AV56G Series
Request price
Available through TRULAND Equipment
- Category
- Loaders
- Type
- Loaders
- Condition
- New
| Overall Base Width, in. (cm) | 72.4 183.9 cm |
| Top Clamp Width, in. (cm) | 64 162.6 cm |
| Depth (Closed), in. (cm) | 19.5 49.5 cm |
| Height (Closed), in. (cm) | 37 94 cm |
| Height (Open), in. (cm) | 46.5 118.1 cm |
| Grapple opening, in. (cm) | 44 111.8 cm |
| Weight, lb (kg) | 570 lbs. 258.5 kg |
| Shipping weight, lb (kg) | 1183 lbs. 536.6 kg |
| Bottom Frame Steel Thickness, in. (cm) | 0.5 1.3 cm |
| Tractor HP Min./Max., HP (kW) | 50-140HP (37.3-104.4) |
| Compatibility | 500, 600 Series (Global Carrier) |
| Tines - Upper Qty. | 7 |
| Tines - Lower Qty. | 8 |
| Tine Spacing, in (cm) | 10.5 26.3 cm |
| Bottom Tine Working Length, in. (cm) | 12 30.5 cm |
| Lift capacity, lb. (kg) | Please review Loader Compatibility Chart |
| Grapple Clamping Force | 5645 (25.1) |
| Maximum clamping diameter, in (cm) | 43.4 110.2 cm |
| Minimum clamping diameter, in (cm) | 1.5 3.8 cm |
| Type | 2″ bore x 12″ stroke x 1-1/4″ rod |
| Quantity | 2 Cylinders |
| Max Hydrualic Pressure, psi (bar) | 3000 (207) |
| Time period | 1 Year Warranty |
