New
Snow Attachments

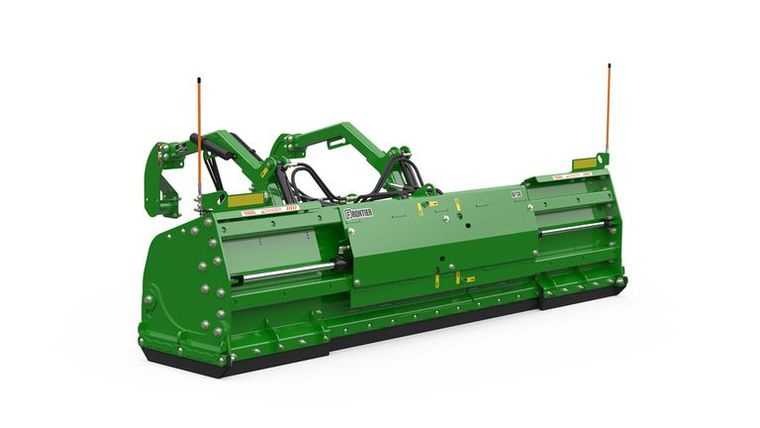

John Deere AF13E
Request price
Available through TRULAND Equipment
- Category
- Snow Attachments
- Type
- Snow Attachments
- Condition
- New
| Type | Inverted |
| Tractor HP Requirements (min.-max.) | 45-75 hp |
| Working Depth Control | Hydraulic |
| Width, Working MIN | 6ft 5in. (1955 mm) |
| Width, Working MAX | 10ft. 5in. (3175 mm) |
| Width, Overall MAX | 10ft. 8.13in (3254 mm) |
| Height, Overall | 56in. (1422mm) |
| Weight, Shipping | 2000 lbs. |
| Weight, Operating | 1680 lbs. |
| Height, Blade | 29in. (736.6mm) |
| Weight, Blade | 1147 lbs. |
| Depth, Blade | 27in. (685.8mm) |
| Weight, Hitch | 415 lbs. |
| Distance, To Ground lifted | 21in. (533.4mm) |
| Distance, Under the ground | 6in. (152.4mm) |
| Distance, Bumper to Cutting Edge | 24.5in (622.3mm) |
| Height, Cutting Edge | 5in. (127mm) |
| Thickness, Cutting Edge | 1in. (25.4mm) |
| Height, Skid Shoe Cutting Edge | 5in. (127mm) |
| Thickness, Skid Shoe Cutting Edge | 1in. (25.4mm) |
| Type, Skid Shoe | UHMW |
| Skid Shoe Adjustment | -2 @ 8 |
| Thickness, Frame (in.) | 1/4 |
| Harness Tube (in.) | 3 x 3 |
| Double Hydraulic Cylinders | 3 x 24 |
| Flow Divider Block | Yes |
| Double Hydraulic Cylinder | 2 x 10 |
| Ground Clearance (in.) | 20 |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere AF13E.
