| Engine displacement | 6.8 L 415 cu in. |
| Maximum engine power | 137 kW 184 hp |
| Hydraulic pump rated output | Standard: 85 cc pump: 160 L/min 42 gpm |
| Rear hitch category (SAE designation) | Category 3/3N: 7000 kg 15,432 lb |
| Base machine weight | 9300 kg 20,503 lb |
| Engine type | Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head |
| Engine family | NJDXL06.8324 |
| Rated speed | 2100 rpm |
| Aspiration | Turbocharged, variable geometry and fixed turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation |
| Emission level | Final Tier 4 |
| After treatment type | DOC/DPF/SCR |
| Displacement | 6.8 L 415 cu in. |
| Rated PTO power (hp SAE) | 137 kW 184 hp |
| Intelligent Power Management (IPM) | Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp |
| Power boost | 10 percent |
| Engine peak torque | At 1,600 rpm: 1074 Nm 792 lb-ft |
| PTO torque rise | 40 percent |
| Reverser | Left-hand electrical reverser |
| Type | Closed-center, pressure-and-flow compensated |
| Pump rated output | Standard: 85 cc pump: 160 L/min 42 gpm |
| Available flow at a single rear SCV | 116 L/min 30.6 gpm |
| Number of rear selective control valves (SCVs) | Standard: Three ISO couplers Optional: Three to six ISO couplers |
| Number of mid selective control valves (SCVs) | Up to three |
| Joystick SCV control | Available |
| SCV control | Standard: Electronic |
| Remote control valves available | Available: Remote control switch |
| Hitch category (SAE designation) | Category 3/3N: 7000 kg 15,432 lb |
| Maximum lift capacity behind lift points | 7000 kg 15,432 lb |
| Sensing type | Electrohydraulic |
| Rear axle differential lock | Electrohydraulic |
| Drawbar category | Category 3 |
| Maximum vertical load | Category 3: 1600-2800 kg 3527-6172 lb Maximum vertical load dependent on drawbar position |
| Engine rpm (at rated PTO speeds) | 1950 engine rpm at 540/1000 rpm PTO 1761 engine rpm at 540E rpm PTO 1756 engine rpm at 1000E rpm PTO |
| PTO actuation | Electrical modulation |
| Category | Category 3N |
| Electric power | Seven-pin electrical socket Optional: Three-pin and ISOBUS socket |
| Standard lift capacity | At hook ends: 3300 kg 7275 lb |
| Front power take-off (PTO) | 1000 rpm, clockwise rotation (from driving position) |
| PTO speed | Engine at PTO speed (1000): 1965 rpm |
| Final drive type | Inboard planetary three pinion |
| Differential controls | Full-locking electrohydraulic |
| Front axle differential lock | TLS: Limited slip TLS with brakes: Full-locking electrohydraulic |
| Rear | 520/85R42 R1W |
| Wheel tread range | MFWD: With TLS and brakes: 2370 in. 93.3 in. |
| Alternator size | Standard: 250 amp |
| Battery options | 12 V |
| Working lights | Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen |
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen, 65 W W Optional: LED |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

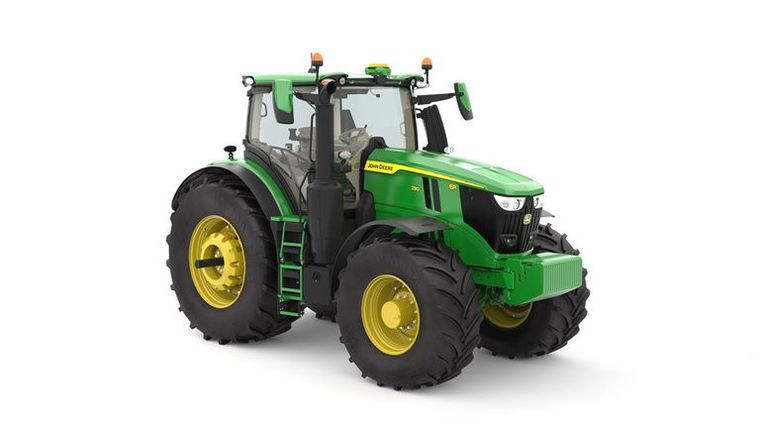

Tell us what you want to know about the John Deere 6R 230.
