| Engine description | John Deere PowerTech™ PSS |
| Engine displacement | 4.5 L 276 cu in. |
| Rated engine power | 120 hp 88.3 kW |
| Maximum engine power | 132 hp 97.1 kW |
| Rated PTO power (hp SAE) | 93 hp 69 kW |
| Maximum PTO power | 105 hp 78 kW |
| Transmission type | Standard: John Deere 16-speed PowrQuad™ 19 mph (30 k/h) Optional: John Deere 16-speed PowrQuad™ 24 mph (38 k/h) & John Deere 24-speed PowrQuad™ 25 mph (40 k/h) Creeper available: PowrQuad™ |
| Hydraulic pump rated output | Base: 80 L/min 21.1 gpm Optional: 114 L/min 30.1 gpm |
| Rear hitch category (SAE designation) | Standard: Category 2 Optional: Category 3 |
| Base machine weight | 6,250 kg 13,779 lb |
| Description | John Deere PowerTech™ PSS |
| Engine type | 4045HL555 (PSS) |
| Rated speed | 2,100 rpm |
| Aspiration | Turbo charged. Variable geometry turbo with fixed geometry and cooled exhaust gas recirculation (EGR) |
| Emission level | FT4 |
| After treatment type | FT4: Cooled exhaust gas recirculation (EGR), Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF |
| Displacement | 4.5 L 276 cu in. |
| Rated power | 120 hp 88.3 kW |
| Intelligent Power Management (IPM) | Transport and/or mobile PTO applications N/A |
| Power boost | 10 percent |
| Engine peak torque | 562 Nm 414.5 lb-ft |
| PTO torque rise | 40 percent |
| Type | PowrQuad™ transmission |
| Reverser | Mechanical left-hand reverser |
| Creeper | Optional |
| Pump rated output | Standard: 80 L/min 21.1 gpm Optional: 114 L/min 30.1 gpm |
| Number of rear selective control valves (SCVs) | Up to three |
| Number of mid selective control valves (SCVs) | Up to three |
| Joystick SCV control | Mechanical |
| Hitch category (SAE designation) | Standard: Category 2 Optional: Category 3 |
| Rear hitch lift capacity (SAE designation) | 3,200 kg 7,048 lb Optional: 3,600 kg 7,930 lb |
| Maximum lift capacity at coupling points | Standard: 4,950 kg 10,903 lb Optional: 5,650 kg 12,445 lb |
| Sensing type | Electronic at lower link |
| Rear axle differential lock | Electrohydraulic with oil-cooled clutch |
| Drawbar category | Category 2 |
| Maximum vertical load | 1200-2000 kg (2646-4409 lb) Maximum vertical load dependent on drawbar position |
| Engine rpm (at rated PTO speeds) | 540 PTO: 1977 rpm 1000 PTO: 1972 rpm |
| PTO actuation | Switch at operator station |
| Category | N/A |
| Electric power | N/A |
| Standard lift capacity | N/A |
| Front power take-off (PTO) | N/A |
| PTO speed | N/A |
| Rear differential lock | Electrohydraulically with oil-cooled clutch |
| Front axle differential lock | Self-locking differential |
| Front | 380/85R24 |
| Rear | 460/85R34 |
| Alternator size | Standard: 14 V/120 amp Optional: 14 V/250 amp |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

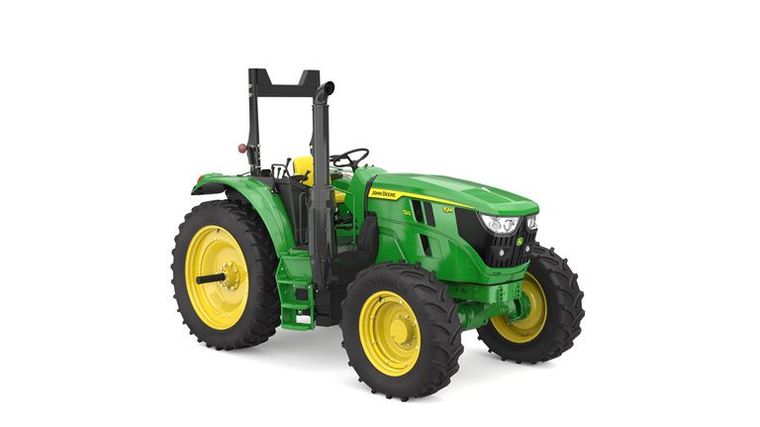

Tell us what you want to know about the John Deere 6M 120.
