| Engine description | John Deere PowerTech™ PWS (B20 Diesel Compatible) |
| Engine displacement | 4.5 L 275 cu in. |
| Rated engine power | 97/68EC: 99 kW 135 engine hp |
| Rated PTO power (hp SAE) | 86 kW 115 PTO hp |
| Transmission type | Standard: John Deere12F/12R PowrReverser™ Transmission: 30 km/h 19 mph Optional: John Deere 24F/12R PowrReverser Transmission 40 km/h 25 mph |
| Hydraulic pump rated output | 36.5 cc pump: 75.7 L/min 20 gpm |
| Rear hitch category (SAE designation) | Standard: Category 2: 2500 kg (5500 lb) standard lift at 610mm behind hitchpoint Optional: Category 2: 3318 kg (7300 lb) heavy duty lift at 610mm behind hitchpoint |
| Description | John Deere PowerTech™ PWS (B20 Diesel Compatible) |
| Engine type | Diesel, in-line, 4-cylinder, wet-sleeve cylinder liners with 4 valves-in-head |
| Engine family | HJDXLO6.8302 |
| Rated speed | 2200 rpm |
| Aspiration | Turbocharge, wastegate Turbocharger with air to air aftercooling and cooled exhaust gas recirculation |
| Emission level | Final Tier 4 |
| After treatment type | DOC/DPF/SCR |
| Displacement | 4.5 L 275 cu in. |
| Rated power | 97/68EC: 99 kW 135 engine hp |
| Engine peak torque | At 1,600 rpm: 539 Nm 397 lb-ft |
| PTO torque rise | 30 percent |
| Type | Standard: John Deere12F/12R PowrReverser™ Transmission: 30 km/h 19 mph Optional: John Deere 24F/12R PowrReverser Transmission 40 km/h 25 mph |
| Pump rated output | 36.5 cc pump: 75.7 L/min 20 gpm |
| Available flow at a single rear SCV | 75.7 L/min 20 gpm |
| Number of rear selective control valves (SCVs) | Standard: ISO Couplers 2 Optional: ISO Couplers 3 |
| SCV control | Mechanical |
| Hitch category (SAE designation) | Standard: Category 2: 2500 kg (5500 lb) standard lift at 610mm behind hitchpoint Optional: Category 2: 3318 kg (7300 lb) heavy duty lift at 610mm behind hitchpoint |
| Maximum lift capacity behind lift points | Category 2: with heavy duty lift: 3318 kg 7300 lb |
| Sensing type | Optional |
| Drawbar category | Standard: Category 2 Optional: Category 2 heavy duty |
| Maximum vertical load | Standard: Category 2: 1000-1250 kg 2205-2756 lb Optional: Category 2 heavy duty 1200-1900 kg 2645-4189 lb Maximum vertical load dependent on drawbar position |
| Engine rpm (at rated PTO speeds) | 2085 engine rpm at 540 rpm PTO 2067 engine rpm at 1000 rpm PTO |
| Final drive type | Inboard planetary |
| Rear differential lock | Full-locking mechanical |
| Front axle differential lock | 2WD: None MFWD: limited slip |
| Wheel tread range | MFWD: 1516-2016 mm 59.7-79.4 in. |
| Alternator size | 90 amp |
| Battery options | 12 V |
| Total cold cranking amps | 925 CCA |
| Seat | Standard: Mechanical suspension cloth seat Optional: Air suspension |
| Instructional seat | Optional |
| Display | LCD instrument cluster |
| Wheelbase | MFWD: 2450 mm 96.5 in. |
| Approximate shipping weight, Open;Cab | MFWD Cab: 4645 kg 10,240 lb |
| Maximum ballast level | 6464 kg 14250 lb |
| Crankcase oil volume | 15 L 4 U.S. gal. |
| Fuel tank | 168 L 44.4 U.S. gal. |
| Cooling system | Open station: 18.6 L 4.7 U.S. gal. Cab: 19.1 L 5 U.S. gal. |
| Transmission-hydraulic system | 58 L 15.3 U.S. gal. |
| Interval for engine oil change | 500 hours |
| Interval for hydraulic/transmission oil change | 1,000 hours |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

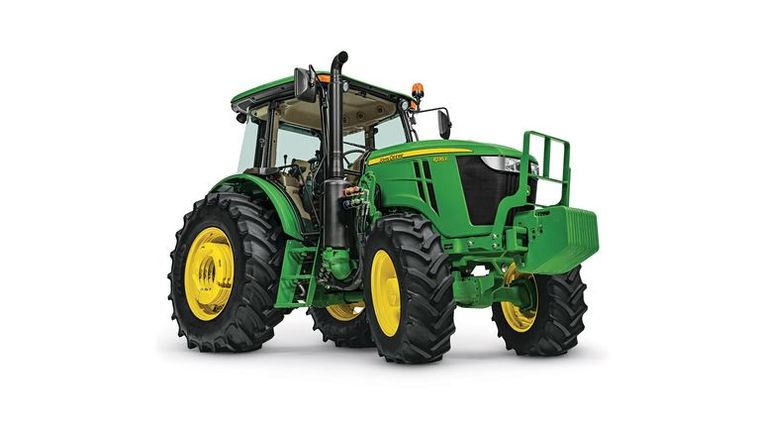

Tell us what you want to know about the John Deere 6135E.
