| Codes | 6105E 6120E 6120EH 6135E |
| 6151 | 10.00-16 in. 8PR F2 bias X X --- --- |
| 5212 | 460/85R34 in. 8PR R1W radial X X --- --- |
| 5225 | 420/85/R38 in. 8PR R1W radial X X --- X |
| 5234 | 460/85R38 in. 8PR R1W radial X X --- X |
| 6210 | 340/85R24 in. 8PR R1W radial X X --- X |
| 6217 | 320/85R32 R1W X X --- X |
| 6218 | 340/85R24 R1W heavy-duty rim X X --- X |
| 6220 | 380/85R24 in. 8PR R1W radial X X --- X |
| 6222 | 380/85R24 R1W heavy-duty rim X X --- X |
| 6212 | 320/90R46 in 148A8 R2 radial --- --- X --- |
| 6213 | 320/90R50 in 147A8 R1W radial --- --- X --- |
| 6214 | 340/85R38 R2 radial --- --- X --- |
| 6295 | 230/95R48 in TL R1W radial --- --- X --- |
| 5521 | 320/90R50 R1W radial X X X X |
| 5223 | 320/90R46 in 148A8 R2 radial --- --- X --- |
| 5567 | 340/85R38 R2 Radial --- --- X --- |
| 5295 | 230/95R48 In. TL R1W Radial --- --- X --- |
| Model | Displacement Rated power take-off (PTO) power 2100 rpm Rated engine power 97/68/EC standard |
| 6105E | 4.5 L (275 cu in.) 66 kW (89 hp) 77 kW (105 hp) |
| 6120E(H) | 4.5 L (275 cu in.) 76 kW (102 hp) 88 kW (120 hp) |
| 6135E | 4.5 L (275 cu in.) 86 kW (115 hp) 99 kW (135 hp) |
| Environmental Protection Agency (EPA) tier level | Final Tier 4 (FT4) FT4 FT4 |
| Engine model | 4045H 4045H 4045H |
| 97/68/EC at rated speed | 77 kW (105 hp) 88 kW (120 hp) 99 kW (135 hp) |
| Rated engine speed | 2200 rpm 2200 rpm 2200 rpm |
| PTO operating speed | 2100 rpm 2100 rpm 2100 rpm |
| Maximum torque engine speed | 1600 rpm 1600 rpm 1600 rpm |
| Fast idle speed | 2275+10 rpm 2275+10 rpm 2275+10 rpm |
| Low idle speed | 900+10 rpm 900+10 rpm 900+10 rpm |
| Engine | PowerTech PWL PowerTech PWL PowerTech PWS |
| Size | 4.5 L (275 cu in.) 4.5 L (275 cu in.) 4.5 L (275 cu in.) |
| Number of cylinders | 4 4 4 |
| Valves per cylinder | 4 4 4 |
| Aspiration | Turbo and aftercooled Turbo and aftercooled Turbo and aftercooled |
| Engine management | Electronic Electronic Electronic |
| Fuel delivery | High-pressure common rail (HPCR) HPCR HPCR |
| Maximum torque operating speed | 1600 rpm 1600 rpm 1600 rpm |
| Rated PTO power | 66 kW (89 hp) at 2100 rpm 76 kW (102 hp) at 2100 rpm 86 kW (115 hp) at 2100 rpm |
| Rated engine power | 77 kW (105 hp) at 2200 rpm [97/68/EC] 88 kW (120 hp) at 2200 rpm [97/68/EC] 99 kW (135 hp) at 2200 rpm [97/68/EC] |
| Power bulge | 3 percent at 2000 rpm 3 percent at 2000 rpm 3 percent at 2000 rpm |
| Peak torque | 432 Nm (318 lb-ft) at 1600 rpm 494 Nm (364 lb-ft) at 1600 rpm 538 Nm (397 lb-ft) at 1600 rpm |
| Torque rise | 29 percent at 2200 29 percent at 2200 25 percent at 2200 |
| Compression | 16.8:1 16.8:1 16.8:1 |
| Bore x stroke | 11.9 x 12.7 cm (4.7 x 5 in.) 11.9 x 12.7 cm (4.7 x 5 in.) 11.9 x 12.7 cm (4.7 x 5 in.) |
| Engine description | John Deere PowerTech™ PWL (B20 Diesel Compatible) |
| Engine displacement | 4.5 L 275 cu in. |
| Rated PTO power (hp SAE) | 66 kW 89 PTO hp |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

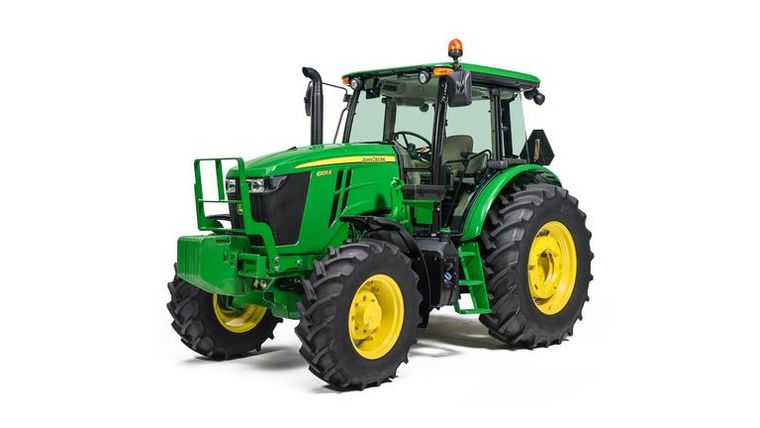

Tell us what you want to know about the John Deere 6105E.
