New
Mini Excavators

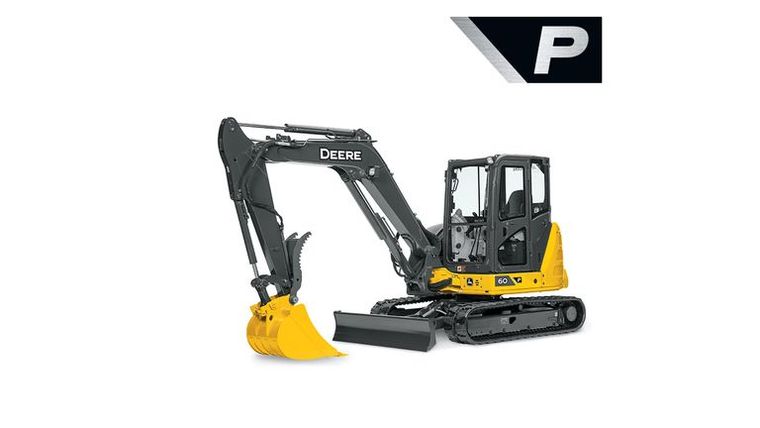

John Deere 60 P-Tier
Request price
Available through TRULAND Equipment
- Category
- Mini Excavators
- Type
- Mini Excavators
- Condition
- New
| Engine Manufacturer | Yanmar |
| Number Of Cylinders | 4 |
| Displacement, ltr (Inches³) | 3.32 (203) |
| Rated speed, rpm | 2000 |
| Engine Output - Net, kW (hp) | 39.6 (53) |
| Number Of Carrier Rollers - Each Side | 1 |
| Number Of Track Rollers - Each Side | 4 |
| Track Shoe Width, mm (inches) | 400 (16) |
| Transport Length Mono Boom, mm (ft/in) | 5760 (18 ft 11 in) |
| Transport Height - Maximum, mm (ft/in) | 2540 (8 ft 4 in) |
| Overall Undercarriage Width, mm (ft/in) | 2000 (6 ft 7 in) |
| Track Length On Ground, mm (ft/in) | 1990 (6 ft 6 in) |
| Overall Undercarriage Length, mm (ft/in) | 2500 (8 ft 2 in) |
| Tailswing Radius, mm (ft/in) | 1300 (4 ft 3 in) |
| Ground Clearance, mm (inches) | 325 (13) |
| Dozer Blade Height, mm (inches) | 420 (17) |
| Dozer Blade Width, mm (ft/in) | 2000 (6 ft 7 in) |
| Width over fixed tracks, mm (ft/in) | 2000 (6 ft 7 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 6230 (20 ft 5 in) |
| Dig Height - Mono Boom, mm (ft/in) | 5960 (19 ft 7 in) |
| Dump Height - Mono Boom, mm (ft/in) | 4170 (13 ft 8 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 3770 (12 ft 4 in) |
| Fuel Tank, ltr (gallons (US)) | 120 (31.7) |
| Hydraulic Tank, ltr (gallons (US)) | 80 (21.1) |
| Ground Bearing Pressure, kPa (psi) | 35 (5.1) |
| Swing Speed, rpm | 9.5 |
| Travel Speed - High, kph (mph) | 4.8 (3) |
| Arm Tearout, kN (lbf) | 31.1 (6990) |
| Bucket Breakout, kN (lbf) | 41.1 (9240) |
| Main Pump Flow, lt/min (gallons (US) / min) | 144 (38) |
| Operating Weight, kg (lbs) | 6180 (13620) |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 60 P-Tier.
