| Engine description | John Deere PowerTech™ 4045 EWL |
| Engine displacement | 4 cylinder: 4.5 L 276 cu in. |
| Rated engine power | At 2200 rpm: 88.5 kW 120 hp |
| Maximum engine power | 92.1 kW 123.5 hp |
| Rated PTO power (hp SAE) | At 2100 rpm: 77.2 kW 105 hp |
| Transmission type | Standard: PowrReverser™ 16F/16R Optional: PowrReverser™ Hi-Lo 32F/16R PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
| Hydraulic pump rated output | PowrReverser™: 94 L/min 24.7 gpm PowrQuad™ PLUS/Powr8™: 97 L/min 25.6 gpm |
| Rear hitch category (SAE designation) | Category 2; convertible to 1 |
| Description | John Deere PowerTech™ 4045 EWL |
| Engine type | 4045HLV82 |
| Engine family | NJDXL04.5317 |
| Rated speed | 2200 rpm |
| Aspiration | Turbocharged/air-to-air aftercooled |
| Cylinders liners | Wet sleeved |
| Emission level | Final Tier 4 |
| After treatment type | DOC/SCR |
| Displacement | 4 cylinder: 4.5 L 276 cu in. |
| Rated power | At 2200 rpm: 88.5 kW 120 hp |
| Power boost | At 1900 rpm: 4 percent |
| Engine peak torque | At 1600 rpm: 500 Nm 369 lb-ft |
| PTO torque rise | At 1600 rpm: 30 percent |
| Type | Standard: PowrReverser™ 16F/16R Optional: PowrReverser™ Hi-Lo 32F/16R PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
| Reverser | Left hand, electrohydraulic |
| Clutch; wet/dry | Wet |
| Creeper | Powr8™ 32F/16R with creeper |
| Pump rated output | PowrReverser™: 94 L/min 24.7 gpm PowrQuad™ PLUS/Powr8™: 97 L/min 25.6 gpm |
| Available flow at a single rear SCV | PowrReverser™: 70 L/min 18.4 gpm PowrQuad™ PLUS/Powr8™: 73 L/min 19.3 gpm |
| Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
| Number of mid selective control valves (SCVs) | Standard: Two Optional: Up to Three |
| Joystick SCV control | Mechanical |
| Hitch draft control load sense type | Mechanical or Electrohydraulic |
| Remote control valves available | Standard: Two Optional: Three |
| Hitch category (SAE designation) | Category 2; convertible to 1 |
| Maximum lift capacity behind lift points | Standard for PowrReverser™: 2336 kg 5150 lb Optional for PowrReverser™: 2699 kg 5950 lb Standard for PowrQuad™ PLUS/Powr8™: 3161 kg 6970 lb Optional for PowrQuad™ PLUS/Powr8™: 3565 kg 7860 lb |
| Sensing type | Lower link |
| Rear axle differential lock | Electrohydraulic |
| Drawbar category | Category 2 |
| Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb |
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
| PTO actuation | Electrohydraulic |
| Category | Category 2 |
| Standard lift capacity | 1931 kg 4257 lb |
| Front power take-off (PTO) | 1000 rpm (21 spline) 34.9 mm (1.375 in.) |
| PTO speed | 1000 at 2200 |
| Final drive type | Inboard planetary |
| Differential controls | Electrohydraulic |
| Brakes, type and control | Hydraulic wet disc |
| Rear | MFWD: 18.4R30 (460/85R30) R1W Radial |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

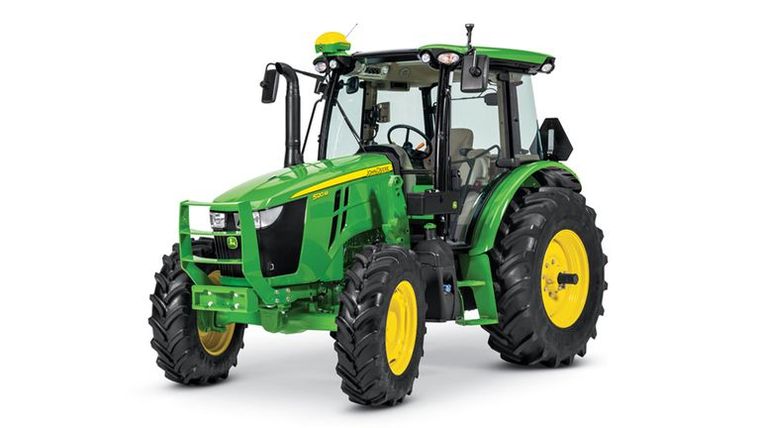

Tell us what you want to know about the John Deere 5120M.
