New
Skid Steer Loaders

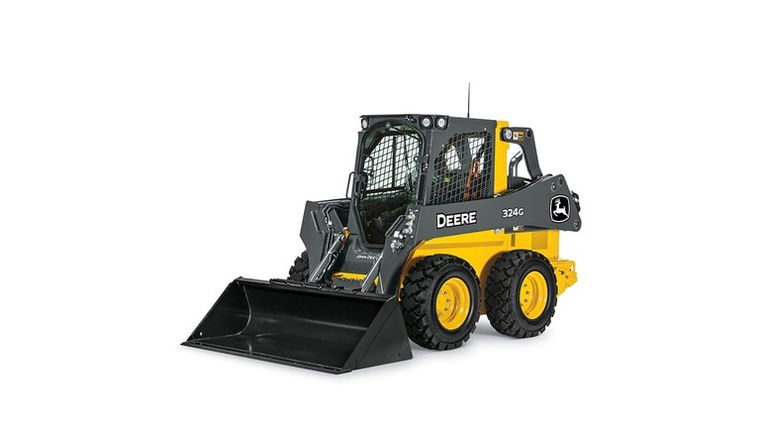

John Deere 324G
Request price
Available through TRULAND Equipment
- Category
- Skid Steer Loaders
- Type
- Skid Steer Loaders
- Condition
- New
| Lift Geometry | Vertical |
| Fleet Management | Yes |
| Precision Guidance | No |
| Proximity Guidance | No |
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV98CT |
| Emission Rating | Tier 4 |
| Aspiration | Turbo |
| Displacement, ltr (Inches³) | 3.3 (203) |
| Rated Speed, rpm | 2500 |
| SAE Net Power, kW (hp) | 52.5 (70) |
| SAE Gross Power, kW (hp) | 55 (74) |
| Max. Gross Torque, Nm (lbf / ft) | 280 (207) |
| Drive Chain Rating [ANSI] | 80 - HD |
| Tire size - Standard | 12 - 16.5 - 12 PR SKS |
| Length - No Bucket, mm (inches) | 2850 (112.3) |
| Length - With Bucket Foundry, mm (inches) | 3460 (136.3) |
| Width - No Bucket, mm (inches) | 1700 (67) |
| Overall Height, mm (inches) | 2060 (81.1) |
| Ground Clearance, mm (inches) | 240 (9.3) |
| Wheelbase, mm (inches) | 1120 (44.2) |
| Rear Departure Angle, Degrees | 28 |
| Height to Hinge Pin, mm (inches) | 3200 (126) |
| Dump Angle, Degrees | 41 |
| Dump Height - Maximum Foundry, mm (inches) | 2590 (102.1) |
| Reach - Max Dump Height Foundry, mm (inches) | 760 (29.9) |
| Rollback - Ground Level, Degrees | 34 |
| Fuel Tank, ltr (gallons (US)) | 79 (21) |
| Rated Operating Capacity - Foundry, kg (lbs) | 1221 (2690) |
| Tipping Load - Foundry, kg (lbs) | 2443 (5380) |
| Axle Torque - Maximum, Nm (lbf / ft) | 6771 (4994) |
| Speed - Maximum, kph (mph) | 11.1 (6.9) |
| Speed - Maximum Option, kph (mph) | 17.9 (11.1) |
| Breakout - Lift Foundry, kN (lbf) | 23.3 (5250) |
| Breakout - Bucket Foundry, kN (lbf) | 38.9 (8750) |
| Hydraulic Power, kW (hp) | 31.009 (41.5) |
| Hydraulic Power - Option, kW (hp) | 47.103 (63.1) |
| Pump Output, lt/min (gallons (US) / min) | 78 (21) |
| Pump Flow - Option, lt/min (gallons (US) / min) | 120 (32) |
| System Pressure, bar (PSI) | 237.87 (3450) |
| Operating Weight - Foundry, kg (lbs) | 3496 (7700) |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 324G.
