New
Compact Track Loaders

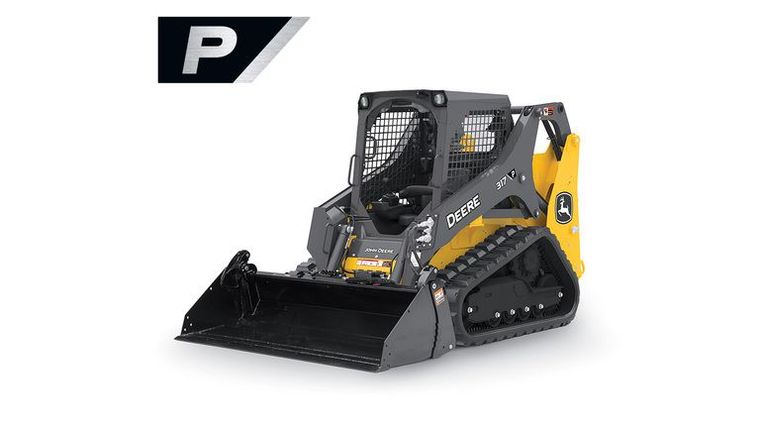

John Deere 317 P-Tier
Request price
Available through TRULAND Equipment
- Category
- Compact Track Loaders
- Type
- Compact Track Loaders
- Condition
- New
| Lift Geometry | Vertical |
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV86CHT |
| Aspiration | Turbo |
| Displacement, ltr (Inches³) | 2.1 (128) |
| Rated Speed, rpm | 2600 |
| Engine Output - Net, kW (hp) | 45.6 (61) |
| Engine Output - Gross, kW (hp) | 48.5 (65) |
| Torque, Nm (lbf / ft) | 207 (153) |
| Track Shoe Width, mm (inches) | 320 (12.6) |
| Length - No Bucket, mm (inches) | 2630 (103) |
| Length - With Bucket, mm (inches) | 3240 (127.6) |
| Width - No Bucket, mm (inches) | 1650 (65.1) |
| Height - Top Of Cab, mm (inches) | 1980 (78) |
| Ground Clearance, mm (inches) | 190 (7.4) |
| Rear Departure Angle, Degrees | 32.3 |
| Height to Hinge Pin, mm (inches) | 3070 (121) |
| Dump Angle, Degrees | 42 |
| Dump Height - Maximum, mm (inches) | 2430 (95.6) |
| Rollback - Ground Level, Degrees | 30 |
| Fuel Tank, ltr (gallons (US)) | 71 (19) |
| Tipping Load, kg (lbs) | 2756 (6070) |
| Ground Bearing Pressure, kPa (psi) | 38 (5.5) |
| Speed - Maximum, kph (mph) | 11.3 (7) |
| Breakout - Lift, kN (lbf) | 23 (5250) |
| Breakout - Bucket, kN (lbf) | 27 (6000) |
| Hydraulic Power, kW (hp) | 25 (33) |
| Pump Flow, lt/min (gallons (US) / min) | 63 (17) |
| System Pressure, bar (psi) | 237.87 (3450) |
| Operating Weight, kg (lbs) | 3824 (8423) |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 317 P-Tier.
