New
Rippers

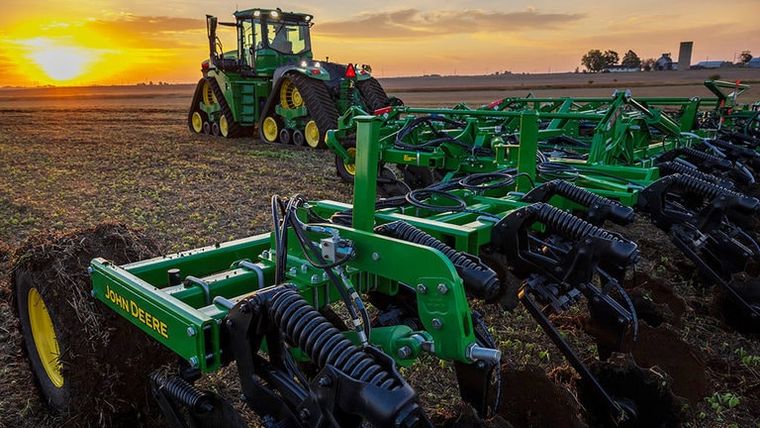

John Deere 2430C
Request price
Available through TRULAND Equipment
- Category
- Rippers
- Type
- Rippers
- Condition
- New
| Size | Working width Transport width Transport height |
| 19 row | 14.5 m (47 ft, 6 in.) 6.0 m (19 ft, 8 in.) 4.30 m (14 ft, 1 in.) |
| 25 row | 19.1 m (62 ft, 6 in.) 5.5 m (18 ft, 2 in.) 4.3 m (14 ft) |
| TruSet Functions Models: | Set-point depth Basket pressure Side-to-side leveling Gang angle Fore-aft Wing down pressure Stabilizer wheels |
| 2230 Floating Hitch Field Cultivator | --- Select Premium --- --- --- --- |
| 2230 Level-Lift™ Field Cultivator | --- Select --- --- --- --- --- |
| 2330 Mulch Finisher | --- Select Premium** --- Premium** --- --- |
| 2630 Series Disks | --- Select Premium --- Premium** --- Option |
| 2633VT Vertical Tillage | --- Select Premium --- Premium** --- --- |
| 2660VT Vertical Tillage 1-Section 4.27 m (14 ft 4 in.) | --- Select Premium Premium Premium --- --- |
| 2680H High-Speed Disk* | In base --- --- --- --- --- --- |
| 2430C | --- --- Premium --- --- --- --- |
| 2430 Drawn Chisel Plow | --- Select Premium --- --- --- --- |
| 2720 Disk Ripper | --- Select** --- --- --- --- --- |
| 2730 Combo Ripper | --- Select** --- --- --- --- --- |
| Working widths | 19 row: 14.5 m 47.5 ft 25 row: 19.1 m 62.5 ft |
| Number of rows | 19, 25 |
| Row spacing | 762 mm 30 in. |
| Transport width | 19 row: 6 m 19 ft, 8 in. 25 row: 5.5 m 18 ft, 2 in. |
| Transport height | 19 row: 4.3 m 14 ft, 1 in. 25 row: 4.3 m 14 ft |
| Overall length | 9.75 m 32 ft |
| Centerframe width | 19 row and 25 row: 3.66 m 12 ft |
| Fold type | Five-section fold |
| Machine weight - conventional | 19 row, with optional closing disks and coulters: 11,939 kg 26,320 lb 25 row, with optional closing disks and coulters: 13,608 kg 30,000 lb |
| Machine weight | conventional 19 row, with optional closing disks and coulters: 11,939 kg 26,320 lb 25 row, with optional closing disks and coulters: 13,608 kg 30,000 lb |
| Fore-and-aft clearance | 3.4 m 134 in. |
| Underframe clearance | Fully raised: 1100 mm 44 in. |
| Blade diameter | 560 x 4.5 mm 22 x 0.177 in. |
| Blade spacing | 762 mm 30 in. |
| Coulter down force | 2669 N 600 lbf |
| Standard options | Conventional knife options with coulters and closing disks Conventional or mole knife Tru-Depth™ conventional |
| Number of standards | 19, 25 |
| Standard spacing | 762 mm 30 in. |
| Standard Operating depth range | 76 to 305 mm 3 to 12 in. |
| Standard trip force | 5560 N 1250 lbf |
| Standard trip height | 280 mm 11 in. |
| Blade type | Concave notched |
| Disk blade diameter | 460 x 3 mm 18 x 0.118 in. |
| Mounting | Independently mounted arms with pin adjustment |
| Side to side adjustment range | 220 to 460 mm 8.8 to 17 in. |
| Trip height | 465 mm 19.5 in. |
| Max down pressure | 222 N 50 lbf |
| Depth control system | TruSet depth control system and single-point depth control system |
| Hitch system | Pull type: Floating hitch Rigid T-hitch - 6 x 12 in. 152 x 305 mm |
| Frame flex | 10 degrees up / 15 degrees down |
| Hitch link | Category 4 or 5 |
| Rear hitch | Fore/aft and side-to-side adjustable drawbar |
| Rear hitch maximum gross vehicle weight (GVW) | 11,300 kg 25,000 lb |
