New
Chisel Plows

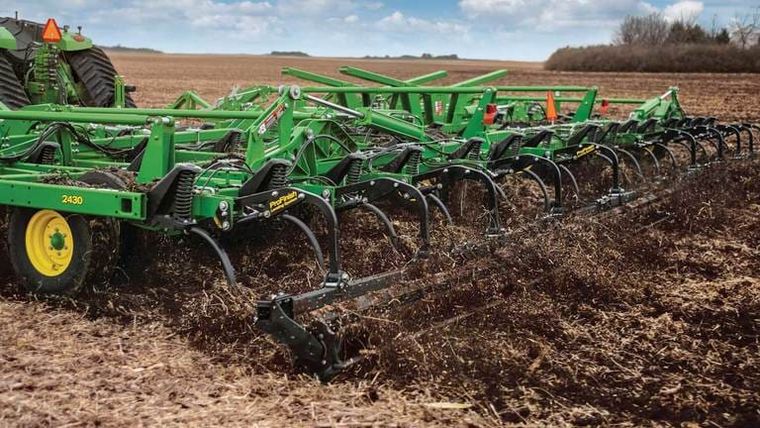

John Deere 2430
Request price
Available through TRULAND Equipment
- Category
- Chisel Plows
- Type
- Chisel Plows
- Condition
- New
| Working widths - Rigid frame | Option 1 3.56 to 5.28 m 11.67 to 17.33 ft 3.05 to 5.49 m 10 to 18 ft |
| Maximum depth | Rigid, TruPosition: max: 20.32 cm 8 in. Spring-reset TruDepth: max: 30.5 cm 12 in. |
| Miles per hour | 8 to 11.3 km/h 5 to 7 mph |
| Standard spacings - Inches | 30.5 cm 12 in. 40.6 cm 16 in. |
| Type | Drawn Rigid, 3-Section Drawn Flex C-Shank, 5-Section Drawn Flex C-Shank |
| Rigid frame | Option 1 3.56 to 5.28 m 11.67 to 17.33 ft |
| Drawn rigid fold | Option 1 5.3 to 6.25 m 17.5 to 20.5 ft |
| 3-section | Option 1 6.65 to 8.5 m 21.83 to 28 ft Mainframe: 3.05 m 10 ft Option 2 7.2 to 11.79 m 23.6 to 38.7 ft Mainframe: 3.66 m 12 ft Option 3 9.35 to 13.1 m 30.67 to 43 ft Mainframe: 4.57 m 15 ft |
| 5-section | Option 1 13.4 to 16.66 m 44 to 54.67 ft Mainframe: 3.66 m 12 ft Option 2 14.33 to 19.2 m 47 to 63 (15 mainframe) ft Mainframe: 4.57 m 15 ft |
| Option 1 | TruSet Tillage In-cab controls and Single-point crank-adjust |
| Option 2 | Single-point crank-adjust |
| Description | Floating Tubular T-Hitch: on Rigid and 3-section: 15.2x25.4 cm 6x10 in. On 5-section: 15.2x30.5 cm 6x12 in. |
| Tubing | High strength, box beam steel cross tubes: 10.2x10.2 cm 4x4 in. End tubes, patented 4-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm 2x5 in. |
| Fore-and-aft | 340.4 cm 134 in. |
| Underframe clearance | Rigid and TruPosition: 71.1 cm 28 in. Spring-reset and TruDepth: 81.3 cm 32 in. |
| Inches | 30.5 cm 12 in. 40.6 cm 16 in. |
| Option 3 | Spec 3.2x5.08x81.3 cm 1.25x2x32 in. Trip height 27.9 cm 11 in. Maximum operating depth 30.5 cm 12 in. Underframe clearance 81.3 cm 32 in. Spacing 30.5 cm 12 in. 40.6 cm 16 in. TruDepth |
| Choices | Variety of sweeps, shovels, and chisel points |
| Tubing size | Rectangular box construction: 7.62x12.7 cm 3x5 in. |
| Telescoping | Yes |
| Tongue weight rating | 45.4 kg 100 lb |
| GVW | 10,000 |
| Wiring harness for transport lights | includes Y-harness, allowing both the 2430 and towed implement lights to work simultaneously |
| Hydraulic hoses and couplers | Available as field attachment |
| Opton 1 | Rear Attachment Options: -Coil-tine Harrow -Hydraulic Knife-edge Rolling Basket |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 2430.
