New
Mulch Finishers

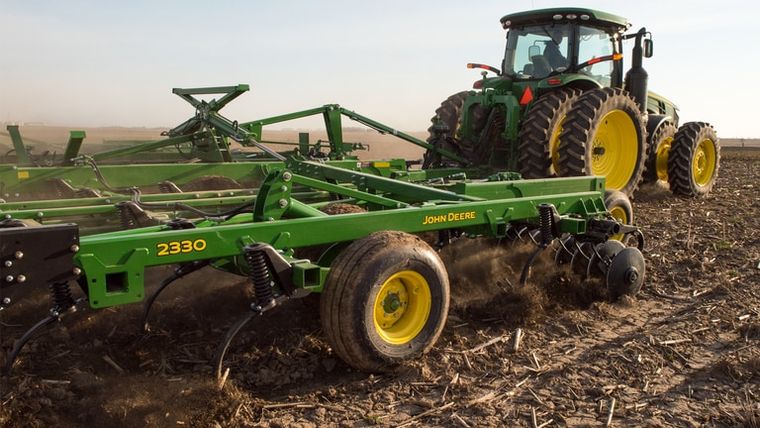

John Deere 2330
Request price
Available through TRULAND Equipment
- Category
- Mulch Finishers
- Type
- Mulch Finishers
- Condition
- New
| Working widths - 3-section | Option 1: 7.54 m 24.75 ft Option 2: 8.46 m 27.75 ft Option 3: 9.37 m 30.75 ft Option 4: 10.29 m 33.75 ft |
| Transport width (without rear harrow) - 3-section | Option 1: 4.27 m 14 ft Option 2: 4.44 m 14.58 ft Option 3: 4.5 m 14.75 ft Option 4: 4.72 m 14.5 ft |
| Transport height (without rear harrow) - 3-section | Option 10: 3.76 m 12.33 ft Option 3: 4.04 m 13.25 ft Option 4: 4.62 m 15.17 ft Option 5: 5.08 m 16.67 ft |
| 5-section | Option 1: 3.58 m 11.75 ft Option 2: 3.91 m 12.83 ft Option 3: 4.5 m 14.75 ft Option 4: 4.87 m 16 ft |
| Operating depth - Inches | Maximum: 15.2 cm 6 in. |
| Miles per hour | 9.7 to 16 km/h 6 to 10 mph |
| Horsepower per foot | 24.5 to 34.2 kW/m 10 to 14 hp/ft |
| Standard spacings - Inches | Split-the-middle - 22.9 cm 9 in. |
| Type | Flex - 3-section or 5-section |
| 3-section | Option 1: 7.54 m 24.75 ft Option 2: 8.46 m 27.75 ft Option 3: 9.37 m 30.75 ft Option 4: 10.29 m 33.75 ft |
| Inches | Maximum: 15.2 cm 6 in. |
| Standard | Three selective-control valves (SCVs) required, hydraulic transport lockup |
| Tubing | Centerframe - 3 m 10 ft, in. Rank tubes - 10.2x10.2 cm 4x4 in. Mainframe fore-aft tubes - 7.6x20.3 cm 3x8 in. Wing fore-aft tubes - 7.62x15.2 cm 3x6 in. |
| Number of ranks | Five |
| Fore-and-aft | 340.4 cm 134 in. |
| Underframe clearance | 61 cm 24 in. |
| Depth adjustment | Base equipment TruSet in-cab depth/pressure control and single-point depth control |
| Maximum depth | Even with sweep: 12.7 cm 5 in. |
| Vertical adjustment | From even with the sweeps to 20.3 cm 8 in. |
| Gang angle, degrees | 8 degree (angle) |
| Blade size | 50.8x0.5 cm 20x0.197 in. |
| Blade spacing | 18.42 cm 7.25 in. |
| Blade concavity | Low |
| Type of scrapers | Combination |
| Type of spool | Steel fabricated |
| Gang shaft diameter | 28.6 mm 1.125 in. |
| Options | Castering with 9.5L-15 tires (right- and left-hand sides) |
| Telescoping | Yes |
| Tongue weight rating | 680 kg 1,500 lb |
| Wiring harness for transport lights | Yes |
| Hydraulic hoses and couplers | One set |
| Date collected | 25-January-2018 |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 2330.
